Astro 26’ Ku Uplink / HD Production Hybrid FAQ
The Astro 26’ Ku Uplink / HD Production Hybrid is a versatile mobile unit designed for both uplink and HD production tasks. Its compact size, advanced technology, and reliable performance make it an excellent choice for live events, remote productions, and broadcasts.
Astro delivers exceptional results wherever it’s deployed. Below, we answer some frequently asked questions about this unique production vehicle.
What is the Astro 26’ Ku Uplink / HD Production Hybrid used for?
The Astro is designed to handle a variety of tasks, including:
- Satellite uplink for live broadcasts and remote productions.
- HD video production, including dynamic camera setups and multi-source editing.
- Live streaming, leveraging its advanced recording and encoding systems.
- Compact event setups in locations with limited space or challenging environments.
Who operates the Astro 26’ Ku Uplink / HD Production Hybrid?
Astro is operated by TNDV, a division of the Live Media Group family. With years of expertise in live event production, TNDV ensures that every deployment of Astro is executed with precision and professionalism.
What are the dimensions and power requirements of the Astro?

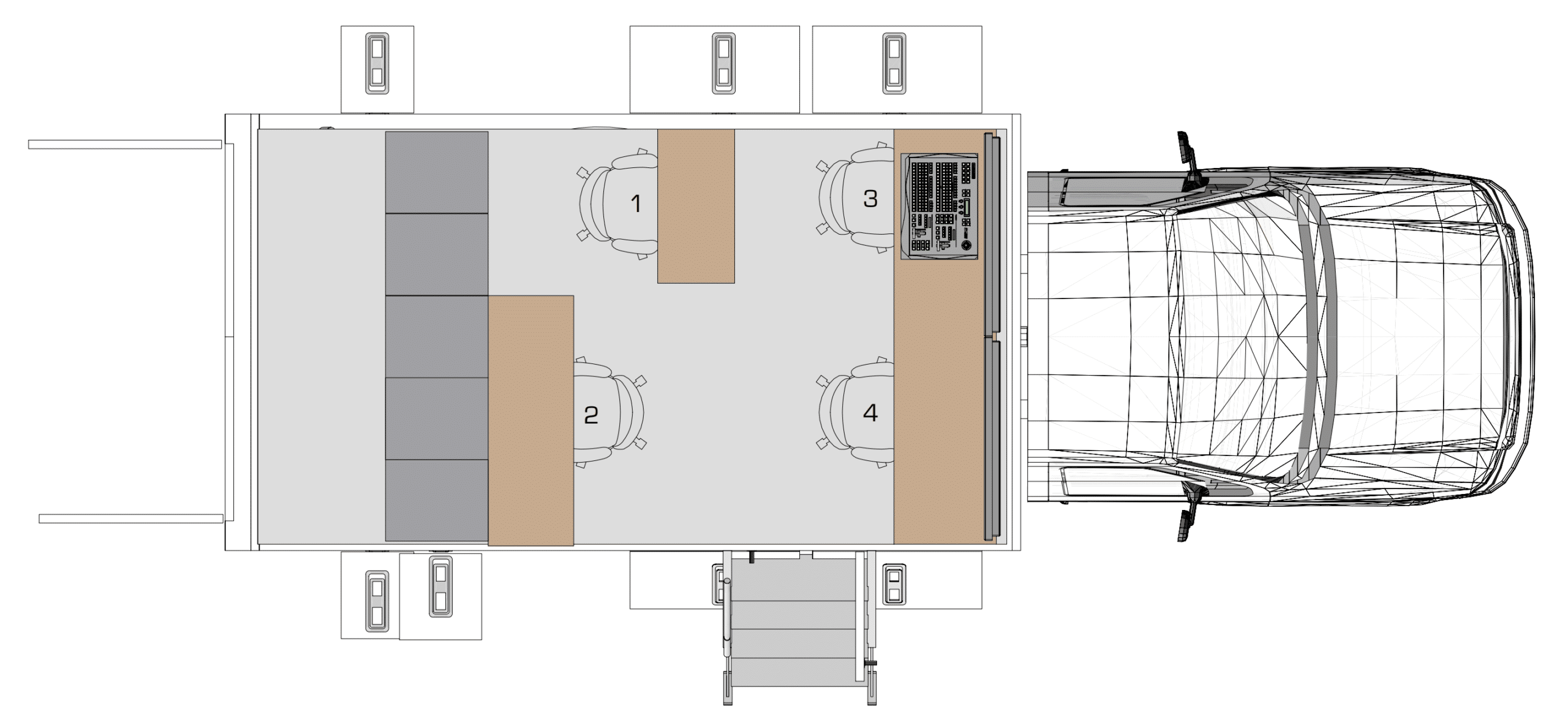

The Astro is a compact, mobile unit that measures:
- Length: 29 feet
- Width: 9 feet
- Height: 13.5 feet
- Weight: 20,000 pounds GVW
It operates on a single-phase power system requiring 80 amps at 208 volts. The unit includes a 100-foot feeder cable with camlock connectors and an onboard 10kW generator, making it suitable for remote locations with limited infrastructure.
What video production capabilities does Astro offer?
The Astro features a For-A HVS-390 Hanabi Switcher, which supports:
- 16 video inputs and 8 outputs
- Two M/Es, each with four keyers
- Advanced effects like chroma keying, still stores, and DVEs
- Two AJA KiPro HDD recorders
- One AJA HELO H.264 recorder for live streaming and file recording
- Wired capacity for up to six recorders
These features make Astro ideal for dynamic video production, offering flexibility for various event types.
How many cameras can Astro support, and how are they configured?
Astro is wired for up to four CCUs, and camera configurations can be customized to meet the needs of specific events. This adaptability ensures high-quality visuals for a wide range of production scenarios, from small-scale setups to more intricate multi-camera events.
What uplink capabilities does Astro provide?
Astro’s uplink capabilities are powered by:
- A 2.4m AVL Ku uplink antenna with a 4-port feed
- Two 125-watt Ku Advantech amplifiers for reliable signal transmission
- Encoding and decoding systems, including:
- Two Adtec EN-100 encoders
- Two Adtec RD60 decoders
- Multichannel mux availability, enabling multiple signal streams
These features ensure stable, high-quality satellite transmissions for live broadcasts and remote productions.
What audio capabilities does Astro offer?
Astro’s audio system is anchored by a Yamaha TF1 Digital Mixing Console, featuring:
- 16 faders and 32 DSP inputs
- Support for 32×16 analog channels and 64×64 MADI channels
- Remote stagebox capability of 16×8
Additional audio equipment includes:
- Two Fostex speakers for monitoring
- Fiber Rattler sets and Decimator MD-Cross converters for flexible audio routing
These systems deliver clear and professional-grade audio for any live event.
How does Astro handle routing and multiview?
Astro is equipped with a 40×40 BlackMagic Design HD/ASI Router, which provides seamless signal management. It includes:
- Frame syncs on all switcher inputs
- Two configurable multiviewer outputs for efficient monitoring
This ensures precise control and visibility over video feeds during complex productions.
What communication infrastructure does Astro have?
Astro’s communication system is powered by an RTS Cronus 32-Port Digital Matrix, which includes:
- Four RTS PL channels and four wet IFB channels
- Two VoIP phone lines and two Verizon cellular POTS lines
This setup ensures seamless communication among crew members, even during high-pressure events.
What makes Astro a unique choice for live event production?
Astro stands out for its combination of compact size, uplink capabilities, and HD production technology. Key features include:
- Satellite uplink functionality paired with dynamic video and audio production systems
- Independent operation via an onboard generator, perfect for remote locations
- Flexibility to adapt to both small-scale and complex event setups
- Operated by TNDV, part of Live Media Group Holdings, ensuring expertise and reliability
What types of events is Astro best suited for?
Astro is ideal for:
- Sports events, offering live coverage and satellite uplink for broadcasting
- Remote productions, where compact size and independent power are essential
- Live streaming, providing high-quality video and stable transmission
- Corporate events, ensuring reliable audio-visual production
- Broadcast news, enabling efficient satellite uplink for field reporting
How can I book the Astro 26’ Ku Uplink / HD Production Hybrid?
Booking Astro is simple. Contact TNDV to discuss your event needs and how Astro can meet them:
- Phone: 877-959-8638
- Email: contact@tndv.com
Conclusion
The Astro 26’ Ku Uplink / HD Production Hybrid is a versatile and reliable production unit for live events and remote broadcasts. Its compact size, powerful uplink capabilities, and professional-grade video and audio systems make it an indispensable tool for producers looking to achieve exceptional results. Reach out to TNDV today to learn more about Astro and how it can elevate your next production
