Astro 26’ Ku Uplink / HD Production Hybrid FAQ

/in /by

The Astro 26’ Ku Uplink / HD Production Hybrid is a versatile mobile unit designed for both uplink and HD production tasks. Its compact size, advanced technology, and reliable performance make it an excellent choice for live events, remote productions, and broadcasts.

Astro delivers exceptional results wherever it’s deployed. Below, we answer some frequently asked questions about this unique production vehicle.

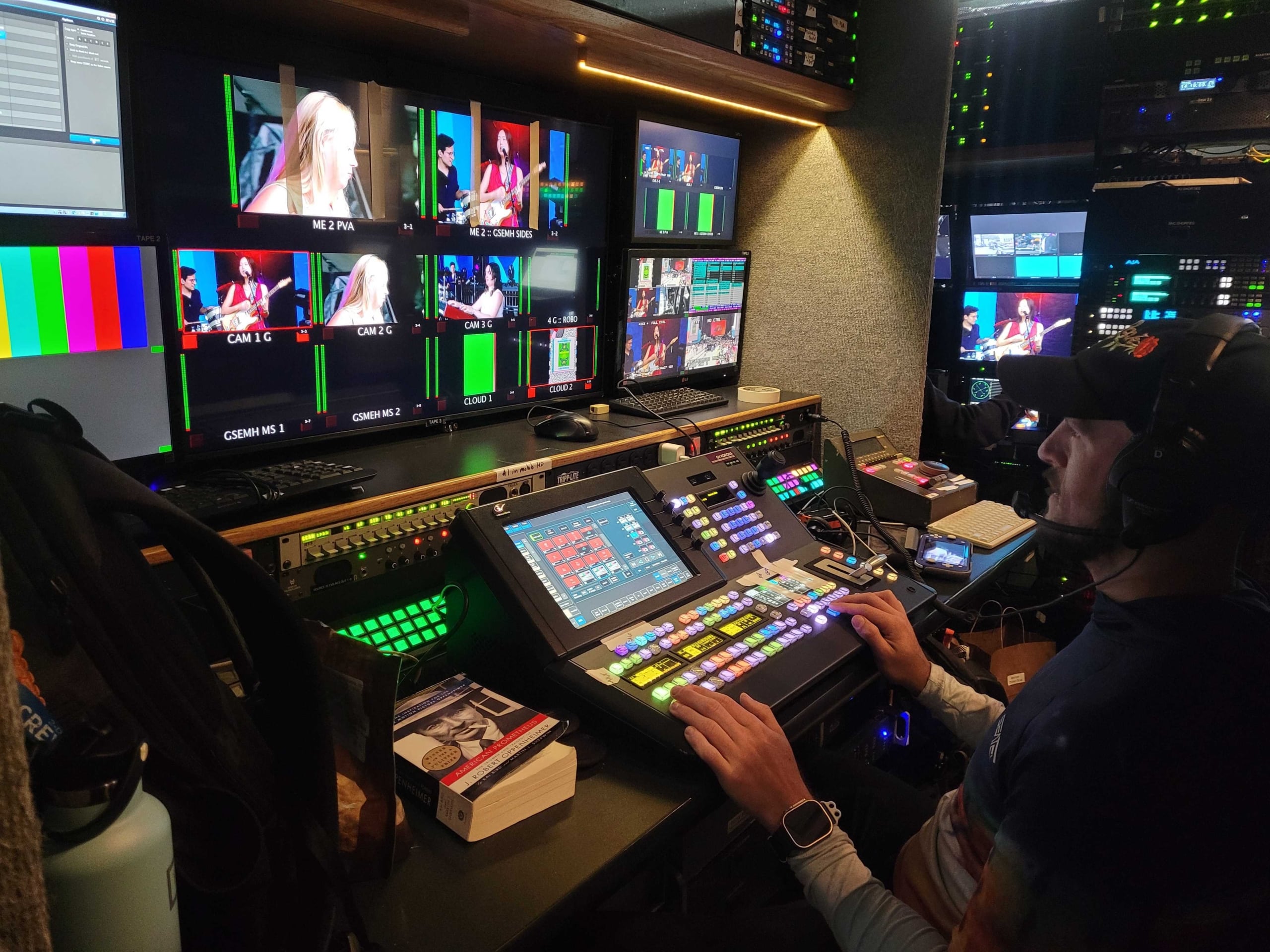

Astro Interior

What is the Astro 26’ Ku Uplink / HD Production Hybrid used for?

The Astro is designed to handle a variety of tasks, including:

  • Satellite uplink for live broadcasts and remote productions.
  • HD video production, including dynamic camera setups and multi-source editing.
  • Live streaming, leveraging its advanced recording and encoding systems.
  • Compact event setups in locations with limited space or challenging environments.

Who operates the Astro 26’ Ku Uplink / HD Production Hybrid?

Astro is operated by TNDV, a division of the Live Media Group family. With years of expertise in live event production, TNDV ensures that every deployment of Astro is executed with precision and professionalism.

What are the dimensions and power requirements of the Astro?

The Astro is a compact, mobile unit that measures:

  • Length: 29 feet
  • Width: 9 feet
  • Height: 13.5 feet
  • Weight: 20,000 pounds GVW

It operates on a single-phase power system requiring 80 amps at 208 volts. The unit includes a 100-foot feeder cable with camlock connectors and an onboard 10kW generator, making it suitable for remote locations with limited infrastructure.

Astro Exterior

What video production capabilities does Astro offer?

The Astro features a For-A HVS-390 Hanabi Switcher, which supports:

  • 16 video inputs and 8 outputs
  • Two M/Es, each with four keyers
  • Advanced effects like chroma keying, still stores, and DVEs
  • Two AJA KiPro HDD recorders
  • One AJA HELO H.264 recorder for live streaming and file recording
  • Wired capacity for up to six recorders

These features make Astro ideal for dynamic video production, offering flexibility for various event types.

How many cameras can Astro support, and how are they configured?

Astro is wired for up to four CCUs, and camera configurations can be customized to meet the needs of specific events. This adaptability ensures high-quality visuals for a wide range of production scenarios, from small-scale setups to more intricate multi-camera events.

What uplink capabilities does Astro provide?

Astro’s uplink capabilities are powered by:

  • A 2.4m AVL Ku uplink antenna with a 4-port feed
  • Two 125-watt Ku Advantech amplifiers for reliable signal transmission
  • Encoding and decoding systems, including:
    • Two Adtec EN-100 encoders
    • Two Adtec RD60 decoders
  • Multichannel mux availability, enabling multiple signal streams

These features ensure stable, high-quality satellite transmissions for live broadcasts and remote productions.

What audio capabilities does Astro offer?

Astro’s audio system is anchored by a Yamaha TF1 Digital Mixing Console, featuring:

  • 16 faders and 32 DSP inputs
  • Support for 32×16 analog channels and 64×64 MADI channels
  • Remote stagebox capability of 16×8

Additional audio equipment includes:

  • Two Fostex speakers for monitoring
  • Fiber Rattler sets and Decimator MD-Cross converters for flexible audio routing

These systems deliver clear and professional-grade audio for any live event.

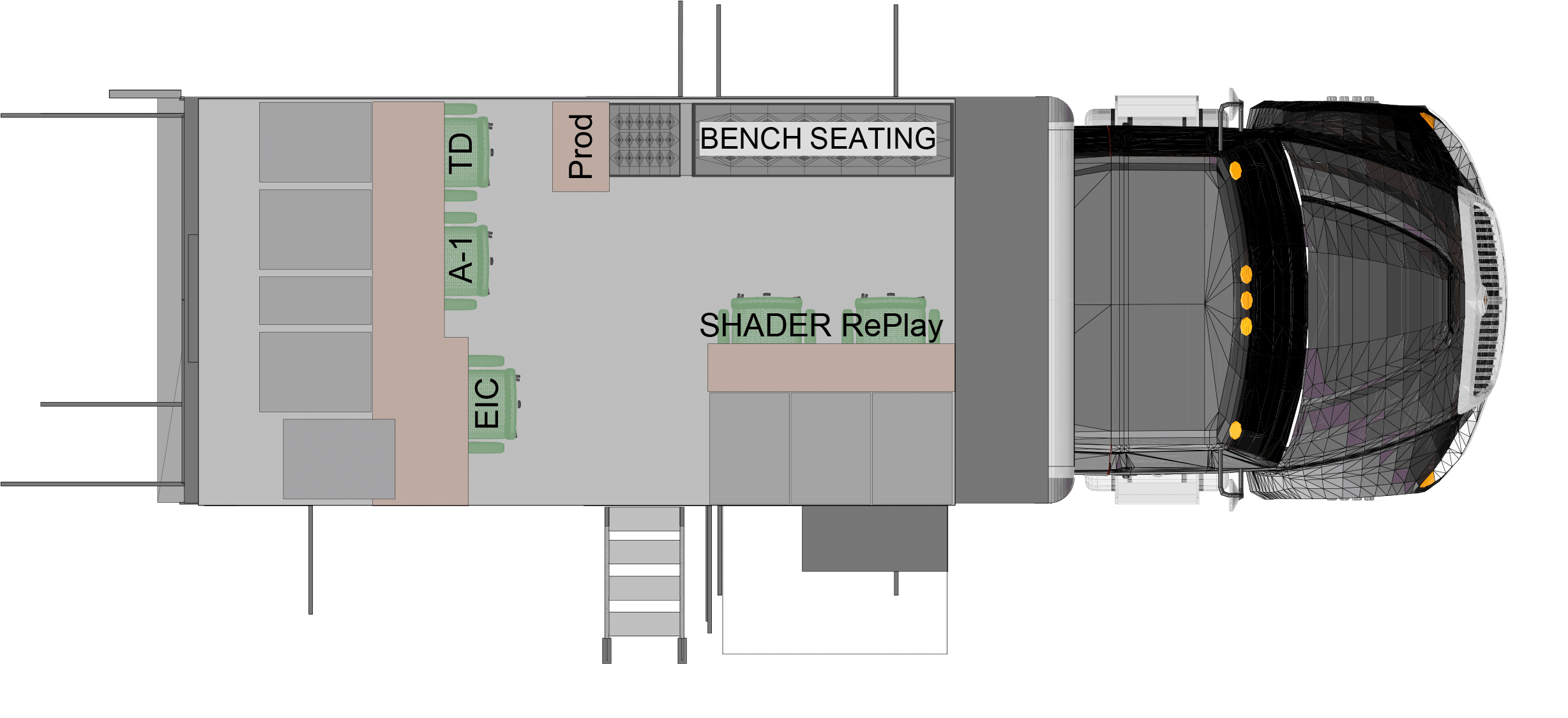

Astro Floorplan

How does Astro handle routing and multiview?

Astro is equipped with a 40×40 BlackMagic Design HD/ASI Router, which provides seamless signal management. It includes:

  • Frame syncs on all switcher inputs
  • Two configurable multiviewer outputs for efficient monitoring

This ensures precise control and visibility over video feeds during complex productions.

What communication infrastructure does Astro have?

Astro’s communication system is powered by an RTS Cronus 32-Port Digital Matrix, which includes:

  • Four RTS PL channels and four wet IFB channels
  • Two VoIP phone lines and two Verizon cellular POTS lines

This setup ensures seamless communication among crew members, even during high-pressure events.

What makes Astro a unique choice for live event production?

Astro stands out for its combination of compact size, uplink capabilities, and HD production technology. Key features include:

  • Satellite uplink functionality paired with dynamic video and audio production systems
  • Independent operation via an onboard generator, perfect for remote locations
  • Flexibility to adapt to both small-scale and complex event setups
  • Operated by TNDV, part of Live Media Group Holdings, ensuring expertise and reliability

What types of events is Astro best suited for?

Astro is ideal for:

  • Sports events, offering live coverage and satellite uplink for broadcasting
  • Remote productions, where compact size and independent power are essential
  • Live streaming, providing high-quality video and stable transmission
  • Corporate events, ensuring reliable audio-visual production
  • Broadcast news, enabling efficient satellite uplink for field reporting

How can I book the Astro 26’ Ku Uplink / HD Production Hybrid?

Booking Astro is simple. Contact TNDV to discuss your event needs and how Astro can meet them:

  • Phone: 877-959-8638
  • Email: contact@tndv.com

Conclusion

The Astro 26’ Ku Uplink / HD Production Hybrid is a versatile and reliable production unit for live events and remote broadcasts. Its compact size, powerful uplink capabilities, and professional-grade video and audio systems make it an indispensable tool for producers looking to achieve exceptional results. Reach out to TNDV today to learn more about Astro and how it can elevate your next production



MU-4 45’ 3G Single Expando: Frequently Asked Questions

/in , , /by

The MU-4 45’ 3G Single Expando is one of the premier mobile production units offered by Live Media Group, TNDV, and GameTime Productions, companies renowned for delivering exceptional live event production services.

Whether you’re planning a high-profile sports broadcast, a corporate event, or a concert, the MU-4 is designed to meet your needs with advanced technology, reliability, and versatility. Below, we answer frequently asked questions about this cutting-edge production unit.

 What is the MU-4 45’ 3G Single Expando used for?

The MU-4 is designed for live event production, offering robust capabilities for:

  • Sports events, including live broadcasting with multiple camera angles and instant replays.
  • Concerts, ensuring dynamic video coverage and pristine audio quality.
  • Award shows and red carpets, providing high-resolution visuals and seamless transitions.
  • Corporate events, offering live streaming and on-site production.
  • Worship events, delivering clarity and precision for immersive experiences.

 Who owns and operates the MU-4?

The MU-4 is part of the fleets operated by Live Media Group, TNDV, and GameTime Productions. Each company specializes in different aspects of live production:

  • Live Media Group: Offers a diverse range of production vehicles and advanced technology for live broadcasts.
  • TNDV: Focuses on high-quality, multi-camera productions for concerts, award shows, and corporate events.
  • GameTime Productions: Provides experienced crews for single events and large-scale projects, ensuring flawless execution.

 What are the key features of the MU-4?

The MU-4 is equipped with top-tier production technology, including:

  • A Grass Valley K-Frame 3G Switcher with 64 inputs and 36 outputs for real-time video management.
  • Replay and playback systems powered by EVS XT3 servers for instant highlights and smooth transitions.
  • Ten Grass Valley LDX 86 SMPTE WorldCam cameras with a wide selection of Fujinon lenses for dynamic, high-resolution coverage.
  • A Calrec Artemis Light Bluefin 2 audio console with 56 faders and support for MADI, AES, and analog audio.
  • An Evertz EQX 3G Router with multiview capabilities for efficient signal management.
  • A 160×160 RTS Adam Matrix Intercom system for reliable communication across production teams.

 How does the MU-4 enhance live event productions?

The MU-4’s advanced systems enable seamless production workflows:

  • Video Production: Its Grass Valley K-Frame switcher provides flexibility for live editing, effects, and transitions.
  • Replay and Playback: EVS XT3 systems allow instant replays and highlights, making it ideal for sports and fast-paced events.
  • Audio Precision: The Calrec audio console ensures high-quality sound mixing, even for intricate multi-source setups.
  • Reliable Communication: The RTS Adam Matrix Intercom system ensures coordination among large production teams.
  • Flexibility in Setup: Its robust cable inventory and versatile configuration make it adaptable to diverse venues and event types.

 What camera and lens options are available with the MU-4?

The MU-4 includes ten Grass Valley LDX 86 SMPTE WorldCam cameras and a variety of Fujinon lenses:

  • Long-range lenses: Two 88×8.8 HD and four 72×9.3 HD lenses.
  • Wide-angle lenses: One 12×4.5 lens and other servo zoom options like the 18×5.5 and 22×7.6.
  • These configurations provide flexibility for capturing detailed close-ups and expansive wide shots.

 What are the dimensions of the MU-4, and how does its configuration support large productions?

The MU-4’s dimensions are designed to maximize both mobility and workspace:

  • Base Dimensions: 43 feet long, 8.5 feet wide.
  • Expanded Workspace: A 36-foot-long, 5-foot-wide section creates ample room for production crews and equipment.
  • Total Length: 78 feet when fully expanded.
  • The truck’s design allows it to handle complex setups while remaining maneuverable for a variety of venues.

 What kind of audio system does the MU-4 have?

The MU-4 features a Calrec Artemis Light Bluefin 2 console with:

  • 56 faders for precise audio control.
  • Support for 64×64 analog, 64×64 AES, and 256×256 MADI channels.
  • Hydra 2 Fiber Audio Field Boxes for seamless on-site audio management.
  • An optional Dante Fiber Audio Booth system to further expand its capabilities.

This system ensures that the MU-4 can deliver pristine audio quality for events of any scale.

How does the MU-4 handle communication during live productions?

The MU-4 is equipped with a 160×160 RTS Adam Matrix Intercom system, offering:

  • 16 Rvon channels and 32 MADI channels.
  • Eight powered PL channels and six powered IFB channels.
  • Dual-listen belt packs and high-quality headsets for clear communication. This system ensures seamless coordination among production teams, even during the most demanding events.

mu-4

What makes the MU-4 stand out compared to other production units?

The MU-4 stands out for its advanced technology, versatile design, and adaptability to a wide range of live events. Key highlights include:

  • Robust video, audio, and routing systems that integrate seamlessly.
  • A comprehensive inventory of cables and A/V equipment to handle complex setups.
  • Trusted operators in Live Media Group, TNDV, and GameTime Productions, bringing decades of expertise to every project.

 What types of events is the MU-4 best suited for?

The MU-4 is ideal for a variety of events, including:

  • Sports broadcasts: Dynamic camera coverage and instant replays.
  • Concerts: High-quality audio and multi-camera setups.
  • Corporate events: Live streaming, presentations, and on-site production.
  • Award shows: Seamless video transitions and real-time coordination.
  • Worship events: Clear visuals and precise audio for spiritual gatherings.

 How can I book the MU-4 for my next production?

Booking the MU-4 is simple. You can contact Live Media Group, TNDV, or GameTime Productions to discuss your event needs:

  • Live Media Group: solutions@livemediagroup.com | 833-933-5483
  • TNDV: contact@tndv.com | 877-959-8638
  • GameTime Productions: patricia.lowry@gametimeprod.com | 833-664-8463

 The MU-4 45’ 3G Single Expando is a high-performance solution for live event production. Its advanced technology, flexibility, and reliability make it the go-to choice for producers seeking exceptional results. For more information or to request a quote, contact any of its trusted operators today!



Unlocking the Potential of the MU-3 45’ 3G Single Expando: Your Questions Answered

/in , , /by

The MU-3 45’ 3G Single Expando is a top-tier mobile production unit designed to handle the demands of modern live events. From sports broadcasts to corporate events, this production powerhouse is packed with advanced technology and versatility. To help you understand how the MU-3 can elevate your next production, we’ve compiled answers to some commonly asked questions about its features and capabilities.

m3 unit

What are the key features of the MU-3 45’ 3G Single Expando?

The MU-3 boasts a wide range of cutting-edge features, including:

  • Grass Valley K-Frame 3G switcher with 64 inputs and 36 outputs.
  • EVS XT3 replay and playback systems for high-speed replays.
  • Ten Grass Valley LDX 86 WorldCam cameras with a variety of Fujinon lenses.
  • Calrec Artemis Light Bluefin 2 audio console with 56 faders.
  • Evertz EQX 3G router with 33 frame syncs and 246×32 multiview capacity.
  • Advanced RTS Adam Matrix intercom system for seamless communication.
  • Extensive cable inventory to handle complex event layouts.

These features make the MU-3 a versatile choice for live productions of any scale.

How does the MU-3 enhance live event productions?

The MU-3’s advanced technology provides unparalleled flexibility and efficiency:

  • High-Quality Video Production: The Grass Valley K-Frame 3G switcher and 10 Grass Valley cameras ensure dynamic, high-resolution visuals.
  • Efficient Audio Management: With the Calrec Artemis audio console, the MU-3 handles complex sound designs with ease.
  • Replay Capabilities: The EVS XT3 systems enable instant replays, critical for sports and other high-energy events.
  • Comprehensive Routing: Evertz routing and multiview capabilities streamline operations, ensuring seamless signal management.

By integrating these systems into a single unit, the MU-3 delivers a professional-grade experience.

What types of events is the MU-3 ideal for?

The MU-3 is versatile and well-suited for a variety of live events, including:

  • Sports broadcasts with multiple camera angles and instant replays.
  • Concerts requiring dynamic audio and video coverage.
  • Corporate events with live streaming and on-site production needs.
  • Award shows and red-carpet events demanding high production value.
  • Worship events or other gatherings requiring top-notch audio and video quality.

Its flexibility allows it to adapt to events of all sizes and complexities.

What cameras and lenses are included in the MU-3?

The MU-3 features ten Grass Valley LDX 86 WorldCam cameras and an array of Fujinon lenses:

  • Long-range lenses, including the 107×8.4 HD and 101×8.9 HD.
  • Wide-angle lenses like the 13×4.5 and 18×5.5.
  • Versatile options for extreme close-ups and expansive shots.

These cameras and lenses ensure the MU-3 can capture every detail, no matter the setting.

How does the MU-3 handle communication during productions?

The MU-3 is equipped with an RTS Adam Matrix intercom system, which ensures reliable communication among production crew members. Key features include:

  • 208×208 channel support.
  • Rvon, MADI, and Omneo connectivity options.
  • Powered PL and IFB channels for seamless communication.
  • High-quality headsets and dual-listen belt packs.

This communication setup ensures clear coordination, even during high-pressure events.

What audio capabilities does the MU-3 offer?

The MU-3’s audio system is powered by the Calrec Artemis Light Bluefin 2 console, which features:

  • 56 faders for precise control.
  • 64×64 analog, 64×64 AES, and 256×256 mono MADI channels.
  • Hydra 2 Fiber Audio Field Boxes for on-site audio routing.
  • Optional Dante Fiber Audio Booth system for additional flexibility.

These capabilities allow the MU-3 to handle even the most intricate audio requirements.

What makes the MU-3 stand out among other production units?

The MU-3 stands out for its combination of advanced features, flexible design, and proven performance. Its ability to seamlessly integrate video, audio, replay, routing, and communication systems into a single compact unit makes it a reliable choice for professional live event productions. It is particularly well-suited for events that demand high-quality output and adaptability to complex setups.

Ready to Elevate Your Production?

The MU-3 45’ 3G Single Expando is a mobile production powerhouse designed to meet the evolving needs of live event producers. Whether you’re managing a sports broadcast, concert, or corporate event, this unit delivers exceptional results every time. Contact us today to learn how the MU-3 can enhance your next production.

Astro

/in , /by

Astro

46’ HD Expando with Uplink

Switcher: For-A HVS-390 – 2 M/E 16×8
Audio Board: Yamaha TF1 (32×16 Analog, 64×64 MADI)
Router: BlackMagic Design 40×40 SDI, 3 HD Framesyncs, 40×2 Multiview
Cameras: Grass Valley LDX 80 Elite

Modulation

/in , /by

Modulation

26’ HD Expando with Uplink

Switcher: Ross Carbonite Ultra – 2 M/E 24×10
Audio Board: Yamaha TF3 (32×16 Analog, 64×64 MADI)
Router: BlackMagic Design 40×40 SDI, 3 HD Framesyncs, 40×2 Multiview
Cameras: Hitachi Z-HD5000m
Replay: Ross Mira

Constellation

/in /by

Constellation

26’ Ku Uplink / HD Hybrid

Switcher: For-A HVS-390 – 2 M/E 16×8
Audio Board: Yamaha TF1 (32×16 Analog, 64×64 MADI)
Router: BlackMagic Design 40×40 SDI, 3 HD Framesyncs, 40×2 Multiview
Cameras: Hitachi Z-HD5000

Vibration

/in , /by

Vibration

45’ Audio Production & Multitrack

Audio Board: Studer Vista 9 (96×48 Analog, 64×64 AES, 256×256 MADI)
Router: AJA Kumo 32×32 SDI

Destination

/in , /by

Destination

40’ HD Expando

Switcher: Ross Carbonite C3S – 3 M/E 24×10
Audio Board: Soundcraft SiExpression (32×16 Analog, 64×64 MADI)
Router: NVision 5128 64×64 SDI, 8 HD Framesyncs, 64×2 Multiview
Cameras: Sony HDC-1500
Replay: Ross Mira

Inspiration

/in , /by

Inspiration

40’ 3G/HD

Switcher: Grass Valley 3G K-Frame – 2.5 M/E 32×16
Audio Board: Soundcraft Vi3000 (32×24 Analog, 128×128 MADI, 64×64 Dante)
Router: Imagine Communications 96×96 SDI, 12 3G Framesyncs 96×16 Multiview
Cameras: Hitachi SK-HD1200
Replay: EVS XT2

40' HD Expando mobile unit

Sallie

/in , /by

Sallie

40’ HD Expando

Switcher: Grass Valley K-Frame – 3.5 M/E 48×24
Audio Board: Calrec Artemis (32×32 Analog, 128×128 MADI)
Router: NVision 8140 144×252 SDI, 12 3G Framesyncs, 144×12 Multiview
Cameras: Grass Valley LDX 80 Elite
Replay: EVS XT2
