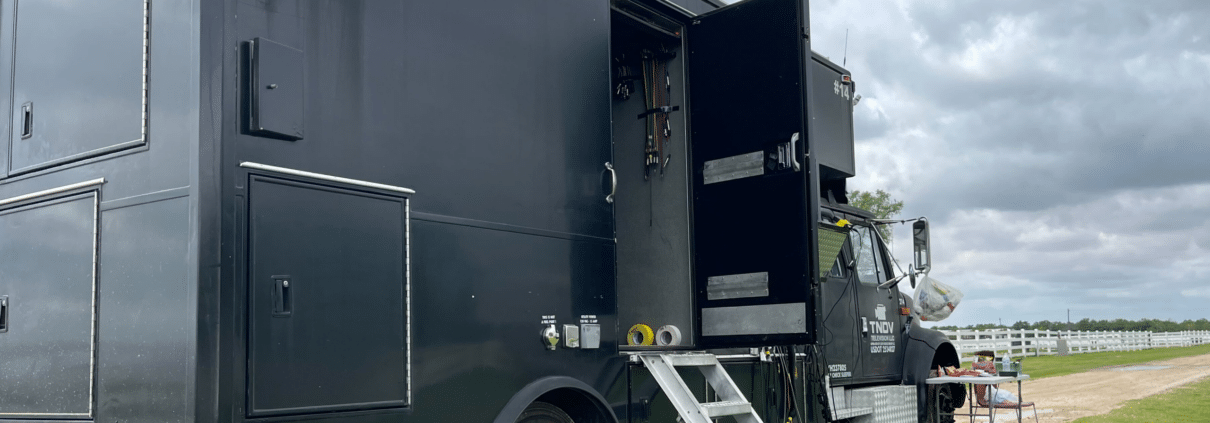

Constellation 26’ Ku Uplink / HD Production Hybrid: Compact Powerhouse for Live Productions
Constellation 26’ Ku Uplink / HD Production Hybrid is a mobile production unit designed to deliver professional-grade results for live events, remote broadcasts, and uplink transmissions. Compact yet versatile, this vehicle offers state-of-the-art video, audio, and communication systems tailored to meet the demanding needs of modern production environments.
Operated by TNDV, a division of Live Media Group, Constellation is a trusted solution for event producers seeking a reliable, high-performance production platform.
What Makes Constellation Stand Out?
Constellation is a powerful hybrid production vehicle that combines cutting-edge technology with a practical, mobile design. Its standout features include:
- Advanced For-A HVS-390 Hanabi Switcher, supporting 16 inputs and 8 outputs, perfect for dynamic video management.
- Reliable uplink capabilities with a 2.4m Vertex Ku antenna and high-powered Adtec encoders and modulators.
- Professional-grade Yamaha TF1 Digital Mixing Console for pristine audio quality.
- Compact dimensions (29 feet long, 9 feet wide, 13.5 feet high) for accessibility in diverse production environments.
- Onboard 20kW generator, ensuring seamless operation even in remote locations.
These features, combined with TNDV’s expertise, make Constellation a go-to solution for productions requiring high-quality results with maximum efficiency.
Key Features and Capabilities
- Compact Design for Diverse Locations
Constellation’s manageable size and self-sufficiency make it a flexible choice for any venue. Its onboard generator eliminates the need for external power sources, while its single-phase 80-amp power configuration ensures compatibility with standard power setups. This adaptability allows Constellation to operate efficiently, even in remote or challenging environments. - Advanced Video Production Tools
At the core of Constellation’s video production capabilities is the For-A HVS-390 Hanabi Switcher. With two M/Es, chroma keyers, DVEs, and a still store, this switcher provides the flexibility needed for seamless live event coverage. Supporting up to five recorders and one 8-channel replay unit, Constellation ensures smooth transitions, replays, and playback, ideal for sports and other high-energy events. - High-Quality Camera Systems
Constellation supports up to four Hitachi Z-HD5000 Hybrid Fiber Cameras, optimized for 1080i/720p resolution at 59.94 frame rates. Its lens configuration includes Fujinon 20x ENG and 13×4.5 wide-angle lenses, providing dynamic options for capturing both close-up and wide-angle shots. These features enable the production of visually stunning broadcasts. - Reliable Uplink Transmission
The vehicle’s robust uplink system ensures uninterrupted satellite transmission. Equipped with a 2.4m Vertex Ku antenna, Adtec encoders, and powerful amplifiers, Constellation handles live broadcasts and remote transmissions with ease. Its multichannel mux capability allows for seamless streaming to multiple destinations, making it a versatile uplink solution for any production. - Superior Audio Performance
The Yamaha TF1 Digital Mixing Console provides 16 faders, 32 DSP inputs, and 64×64 MADI support, ensuring pristine sound quality. With additional features like remote stagebox support and advanced audio routing tools, Constellation meets the complex audio requirements of live productions. - Comprehensive Communication Infrastructure
Effective communication is critical in live productions, and Constellation delivers with its RTS Zeus 24-Port Digital Matrix. The system includes multiple PL and IFB channels, telephone interfaces, and connectivity options like VoIP phone lines and Verizon cellular POTS lines. This ensures seamless coordination among production crews, even in high-pressure scenarios.
Applications for Constellation
Constellation’s advanced capabilities make it a versatile solution for a wide range of events:
- Sports Events: Capture every moment with dynamic camera systems and replay capabilities.
- Corporate Events: Deliver professional-grade live streaming and video production.
- Remote Productions: Compact size and onboard power make it ideal for challenging locations.
- Live Broadcasts: Reliable uplink capabilities ensure stable, high-quality transmissions.
Common Questions About Constellation
What is Constellation best used for?
Constellation is ideal for events requiring both production and uplink capabilities, such as sports broadcasts, live concerts, corporate events, and news coverage.
Can Constellation operate in remote locations?
Yes, its onboard 20kW generator and compact design make it self-sufficient and adaptable to remote or challenging environments.
What resolutions does Constellation support?
Constellation supports 1080i and 720p resolutions at 59.94 frame rates, ensuring broadcast-quality visuals.
How many cameras can Constellation handle?
The unit supports up to four CCUs and includes options for additional camera and lens configurations to suit specific production needs.
Why Choose Constellation for Your Next Production?
Constellation 26’ Ku Uplink / HD Production Hybrid is a compact, powerful solution that combines advanced production technology with reliability and efficiency. Its versatility, coupled with the expertise of the TNDV team, ensures flawless execution for events of all sizes.
Whether you’re producing a live sports event, streaming a corporate conference, or broadcasting remote news, Constellation delivers the tools you need to succeed.
Get Started Today
Contact TNDV to learn how Constellation can elevate your next production. With its advanced capabilities and proven performance, Constellation is ready to bring your vision to life.
- Phone: 877-959-8638
- Email: contact@tndv.com
