Aspiration 40’ UHD/3G/HD Expando Overview

Aspiration 40’ UHD/3G/HD Expando is a high-performance mobile production unit designed for live sports, concerts, corporate events, and major broadcasts. This mid-sized expando unit provides cutting-edge video, audio, and routing capabilities, ensuring seamless, broadcast-quality production for a variety of applications. Operated by TNDV, part of the Live Media Group Holdings family, Aspiration is built for versatility, power, and efficiency in live event production.

Dimensions and Configuration

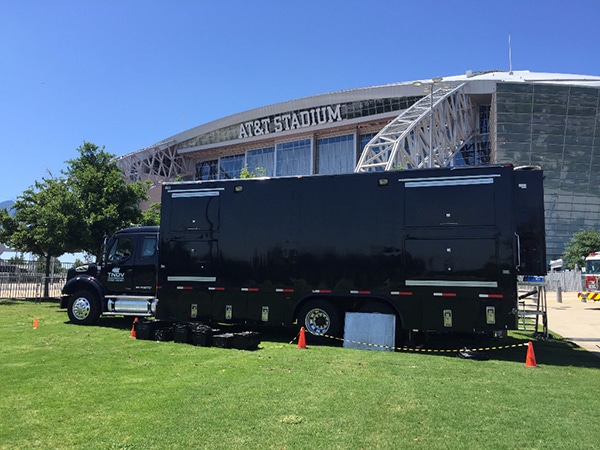

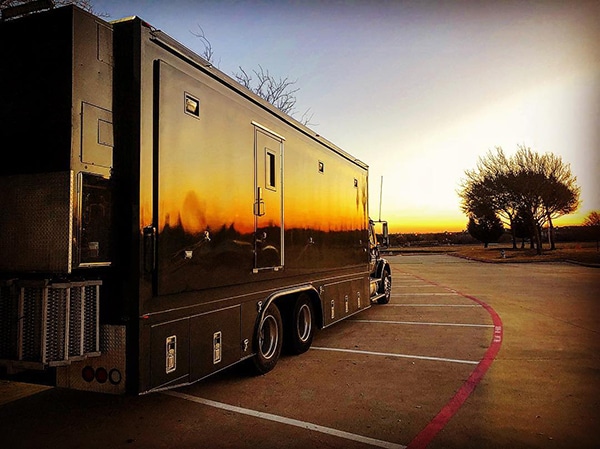

Aspiration is engineered for space efficiency and mobility, making it adaptable to different production environments. It measures 48 feet in length, 13.8 feet in width (expanded), and 13.5 feet in height, with a gross vehicle weight of 46,000 pounds.

Power requirements include a three-phase 200-amp system (208 volts) with 200 feet of feeder cable and camlock connectors, ensuring reliable operation at any venue.

Video Production Technology

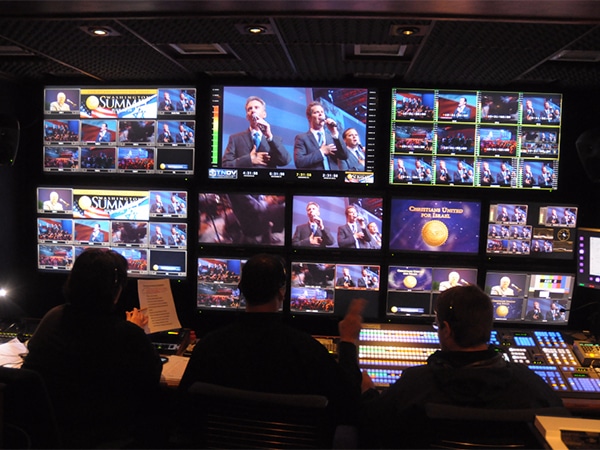

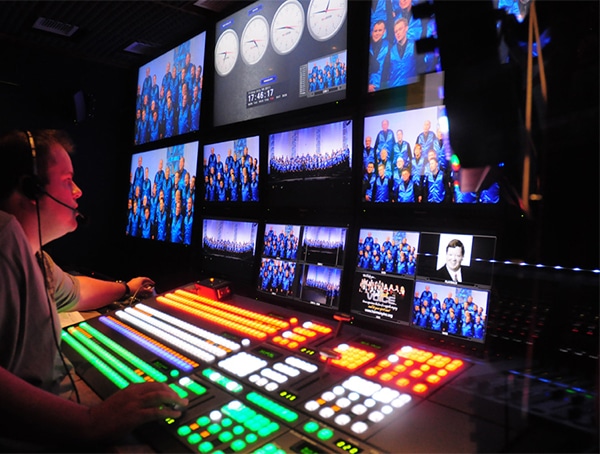

Aspiration is powered by a Grass Valley K-Frame Switcher, providing high-end switching and control capabilities. Key features include:

• Kayenne 3-Stripe 35-Button Control Panel with auxiliary support.
• 64 inputs and 32 outputs for seamless video management.
• 3.5 M/Es with advanced processing, including FlexiKey, Double Take, six keyers per ME, iDPMs, and chroma keyers.
• Integrated ImageStore for video asset management.

For replay and recording, Aspiration includes:

• One EVS XT3 6-Channel LSM Server.
• One EVS XT2 4-Channel LSM Server with Spotbox functionality.
• One EVS X-File 3 for fast file transfers.
• One AJA HELO H.264 Recorder for streaming.
• Twelve AJA KiPro 12G Recorders for high-quality multi-source recording.

Aspiration’s switching and replay capabilities ensure smooth execution for live broadcasts requiring precision and reliability.

Camera System

Aspiration is wired for up to 12 CCUs and features eight Sony HDC-4300 Hybrid Fiber Cameras, supporting 2160p, 1080p, 1080i, and 720p at 59.94, 29.97, and 23.98 frame rates. Key camera features include:

• Eight handheld viewfinders and eight 7-inch studio LCD viewfinders.
• Two Fujinon 20x ENG lenses for long-range shots.
• Four Fujinon 13×4.5 wide-angle lenses for panoramic coverage.
• 3x SuperMotion Available for ultra-smooth slow-motion replays.

This camera package provides high-quality visual coverage for any live production environment.

Audio Capabilities

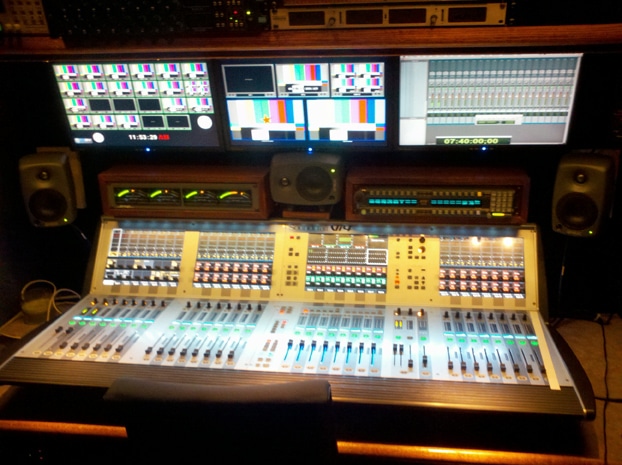

Aspiration is equipped with a Studer Vista V Digital Mixing Console, delivering studio-quality audio processing. Key specifications include:

• 42 faders and 256 DSP inputs for advanced mixing control.
• Full 5.1 Surround Sound mixing capabilities.
• 32×32 analog, 20×20 AES, 320×320 MADI, and 64×64 Dante channel support.
• Wired for up to two 64×32 fiber stageboxes (one included).

Additional audio equipment includes:

• One Avid Pro Tools 128-Channel Audio Recording Rig.
• Two Sound Devices Pix 270i 64-Channel Audio Recorders.
• One Waves SuperRack 96-Channel with Mercury Bundle Support.
• Two Fostex Speakers and three Throwdown HD Monitors.
• Four SDI-HDMI converters, four Fiber Rattler sets, and two Decimator MD-Cross Converters.

Aspiration’s industry-leading audio processing ensures premium sound quality for live events, concerts, and broadcasts.

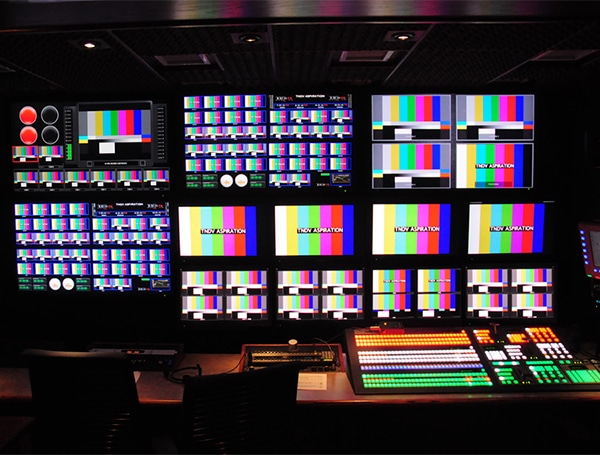

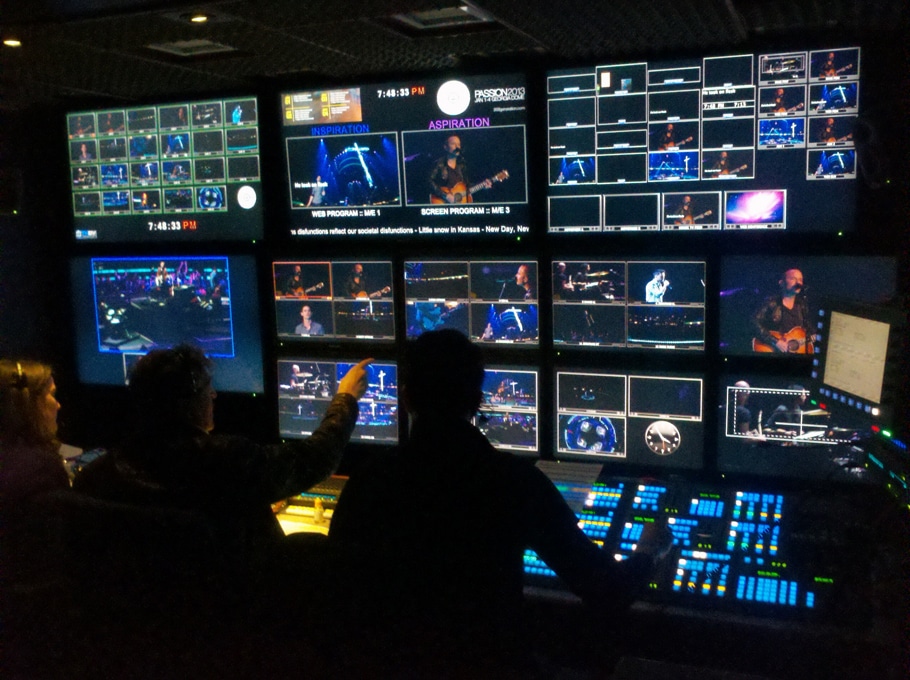

Routing and Multiview

Aspiration’s signal routing and multiviewer system is powered by an Evertz NEXX 192×192 12G Video/Audio Router, featuring:

• 12 configurable integrated multiviewer outputs.
• 16 quad split multiviewers for advanced monitoring.
• Four AJA FS-4s and two Cobalt UDCs for up/down/cross conversion.
• TSL Tallyman Tally Interface for seamless production workflow.

This advanced signal processing and monitoring system ensures smooth video management, making it ideal for multi-camera live productions.

Communication Infrastructure

Aspiration is equipped with an RTS ODIN 128-Port Digital Matrix Intercom System, delivering seamless communication across production teams. Key features include:

• 12 RTS PL channels for crew communication.
• Three RTS telephone interfaces for external connectivity.
• Eight wet IFB channels for talent communication.
• Two Biscuit Boxes for additional control.
• VoIP phone lines and Verizon 5G internet capability for remote access.

This advanced communication system ensures smooth coordination in high-pressure live production environments.

Graphics Capabilities

Aspiration is wired for a dual-channel CG system, including:

• One Ross XPression Dual-Channel Graphics System (SW version 10.5).

This configuration supports professional-grade graphics, overlays, and real-time visual enhancements, making Aspiration ideal for sports broadcasts, corporate events, and high-end productions.

Cable Inventory

Aspiration comes fully equipped with an extensive cable inventory to handle complex production environments:

• 4000 feet of hybrid fiber optic camera cable.
• 1200 feet of DT-12 cable.
• One 1000-foot TAC-12 fiber mult.
• One 500-foot TAC-12 fiber mult.

This ensures seamless integration across large-scale event spaces.

Why Aspiration Stands Out

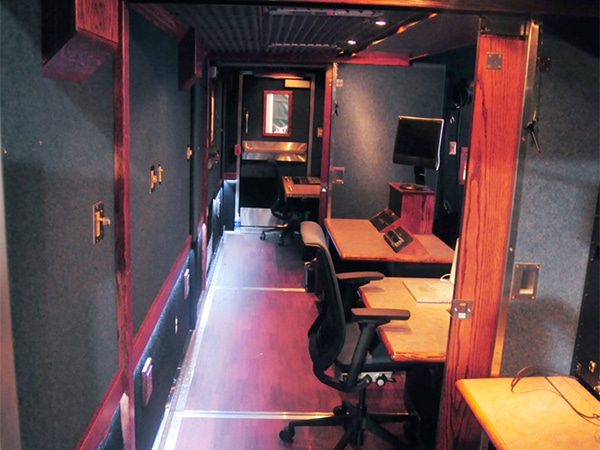

Aspiration is built for mid-to-large-scale productions that require UHD and 3G/HD video quality, flexible audio control, and multi-camera support. Its expando design offers a spacious interior for production teams, and its cutting-edge technology delivers flawless live broadcasts. As part of TNDV and Live Media Group Holdings, it is supported by a team of experts, ensuring seamless execution at every level.

Applications

Aspiration is ideal for:

• Live sports broadcasts with UHD multi-camera setups and instant replay.
• Concerts and festivals requiring dynamic camera angles and premium sound quality.
• Corporate events and conferences needing professional video streaming.
• Award shows and large-scale productions that demand broadcast-level graphics and seamless execution.

Technical Specifications

Conclusion

Aspiration 40’ UHD/3G/HD Expando is a powerful and adaptable mobile production unit designed for high-quality, live event production. With industry-leading video and audio technology, flexible communication systems, and UHD capabilities, Aspiration delivers superior results for major broadcasts and live events.

For more information or to book Aspiration for your next production, contact TNDV today.

• Phone: 877-959-8638
• Email: contact@tndv.com
