Astro 26’ Ku Uplink / HD Production Hybrid Overview

The Astro 26’ Ku Uplink / HD Production Hybrid is a compact yet powerful mobile unit designed to handle both uplink and HD production tasks with efficiency and precision. With its advanced video, audio, and transmission capabilities, Astro is ideal for live events, remote productions, and broadcasts requiring reliable uplink solutions. Operated by TNDV, part of the Live Media Group Holdings family, Astro delivers a versatile, cost-effective option for high-quality productions.

Dimensions and Configuration

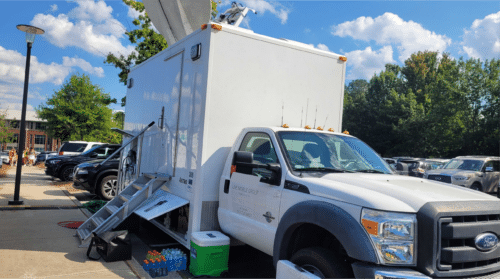

Astro is designed with mobility and efficiency in mind, featuring a compact footprint and onboard power. It measures 29 feet in length, 9 feet in width, and 13.5 feet in height, with a gross vehicle weight of 20,000 pounds. The unit operates on a single-phase 80-amp power system (208 volts) with a 100-foot feeder cable and camlock connectors. An onboard 10kW generator ensures independent operation in remote locations, making Astro suitable for diverse event environments.

Video Production Technology

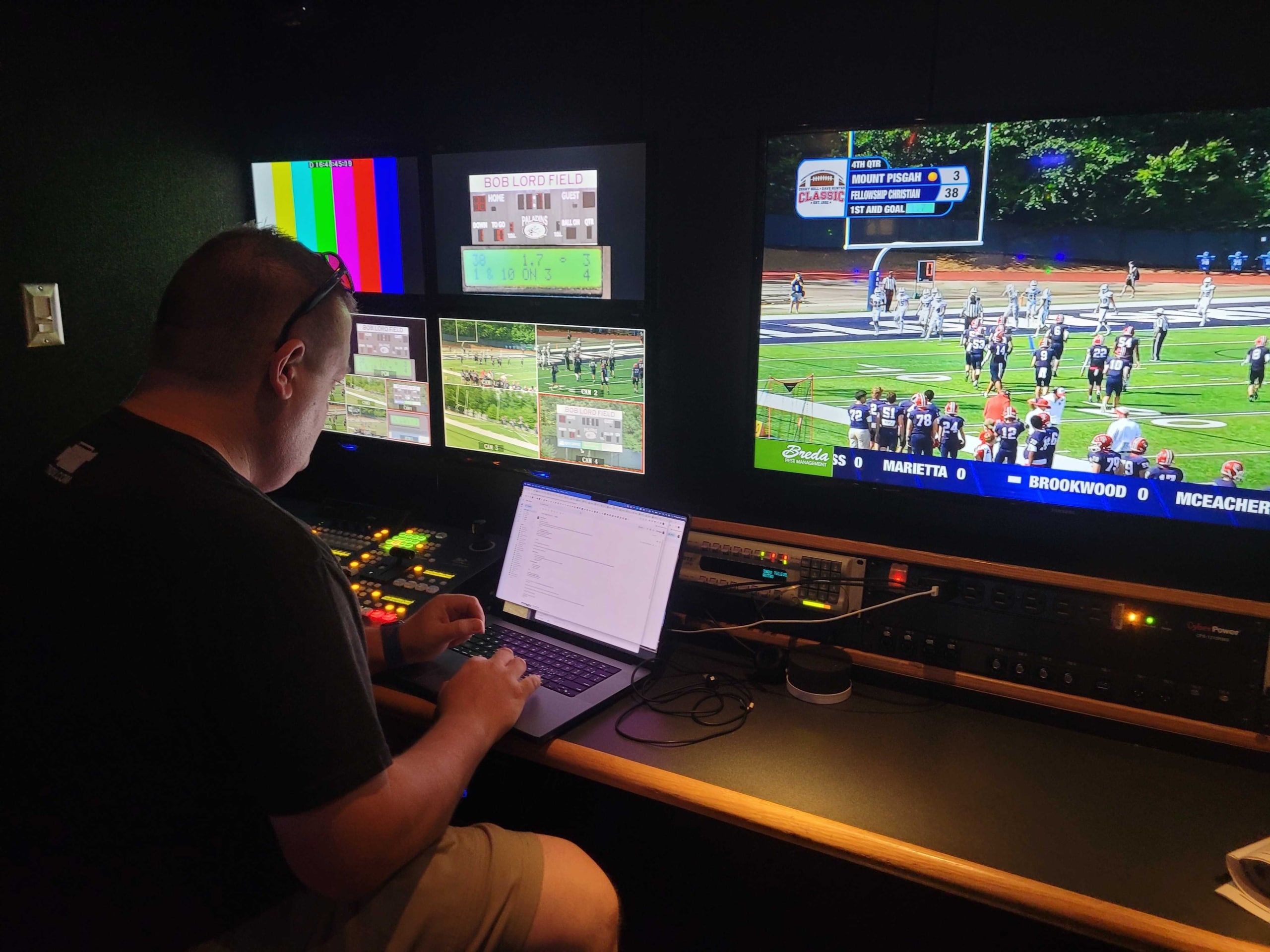

Astro is built around a For-A HVS-390 Hanabi Switcher, a versatile tool for managing live video production. The switcher supports 16 inputs and 8 outputs, with two M/Es, four keyers per ME, advanced effects like chroma keying, still stores, and DVEs. It supports up to six recorders and includes two AJA KiPro HDD recorders and one AJA HELO H.264 recorder for live streaming and file recording. Astro’s switcher and recording capabilities provide flexibility for productions requiring dynamic video feeds and seamless transitions.

Camera System

Astro is wired for up to four CCUs and can be configured based on event specifications. This adaptability allows the unit to cater to productions with varying camera requirements, ensuring high-quality visuals regardless of the setup.

Transmission Capabilities

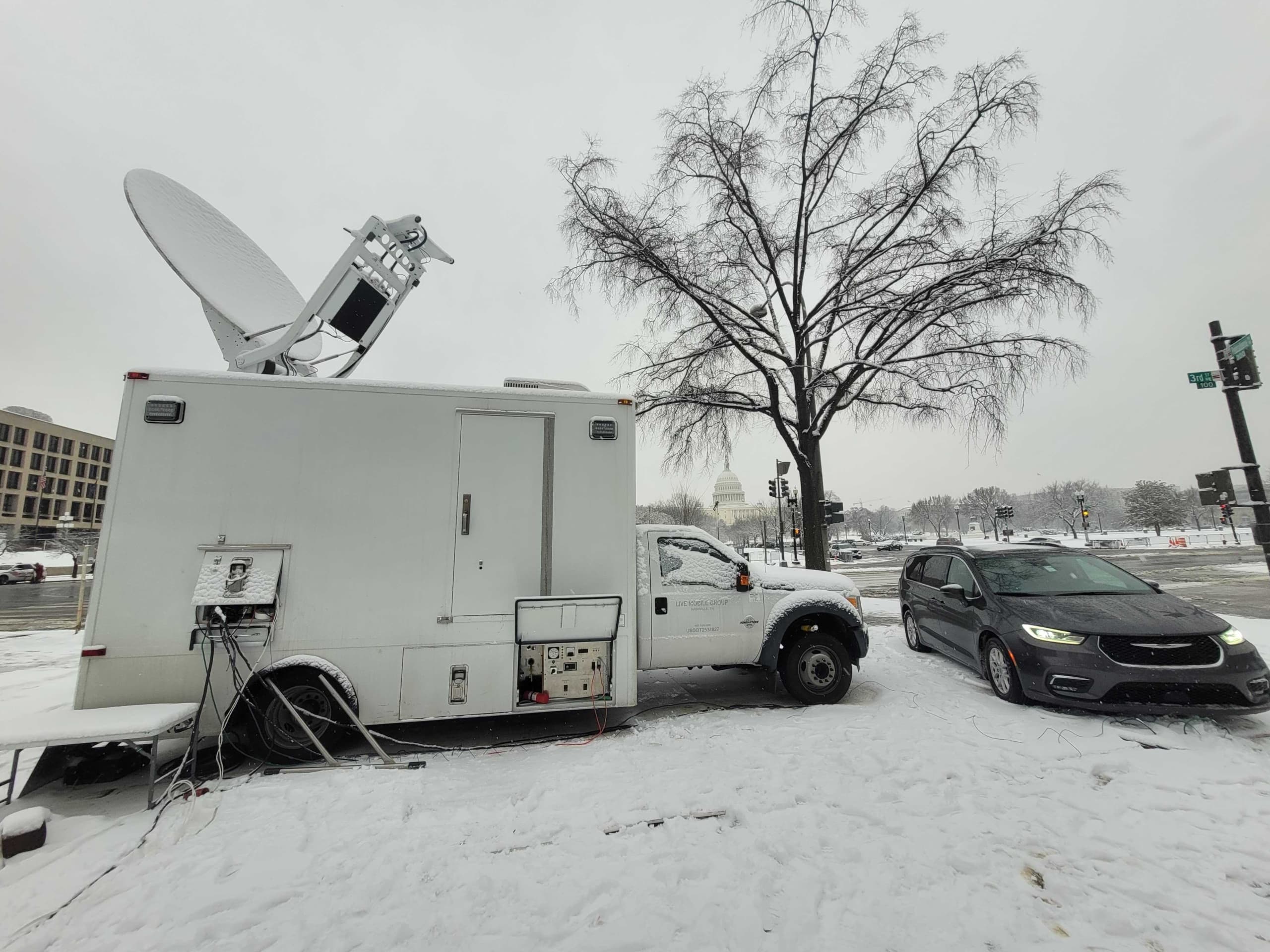

Astro features a robust uplink system for reliable satellite transmission. It is equipped with a 2.4m AVL Ku uplink antenna with a 4-port feed, two 125-watt Ku Advantech amplifiers, two Adtec EN-100 encoders, and two Adtec RD60 decoders. The system also offers multichannel mux availability. This uplink configuration ensures stable, high-quality satellite transmissions for live broadcasts and remote productions.

Audio Capabilities

Astro is equipped with a Yamaha TF1 Digital Mixing Console, providing advanced audio mixing options with 16 faders and 32 DSP inputs. The system supports 32×16 analog channels, 64×64 MADI channels, and 16×8 remote stagebox capability. Additional audio features include Fostex speakers for monitoring, two Decimator MD-Cross converters, and two Fiber Rattler sets for versatile audio routing. These features ensure Astro can deliver clear, high-quality sound for any production.

Routing and Multiview

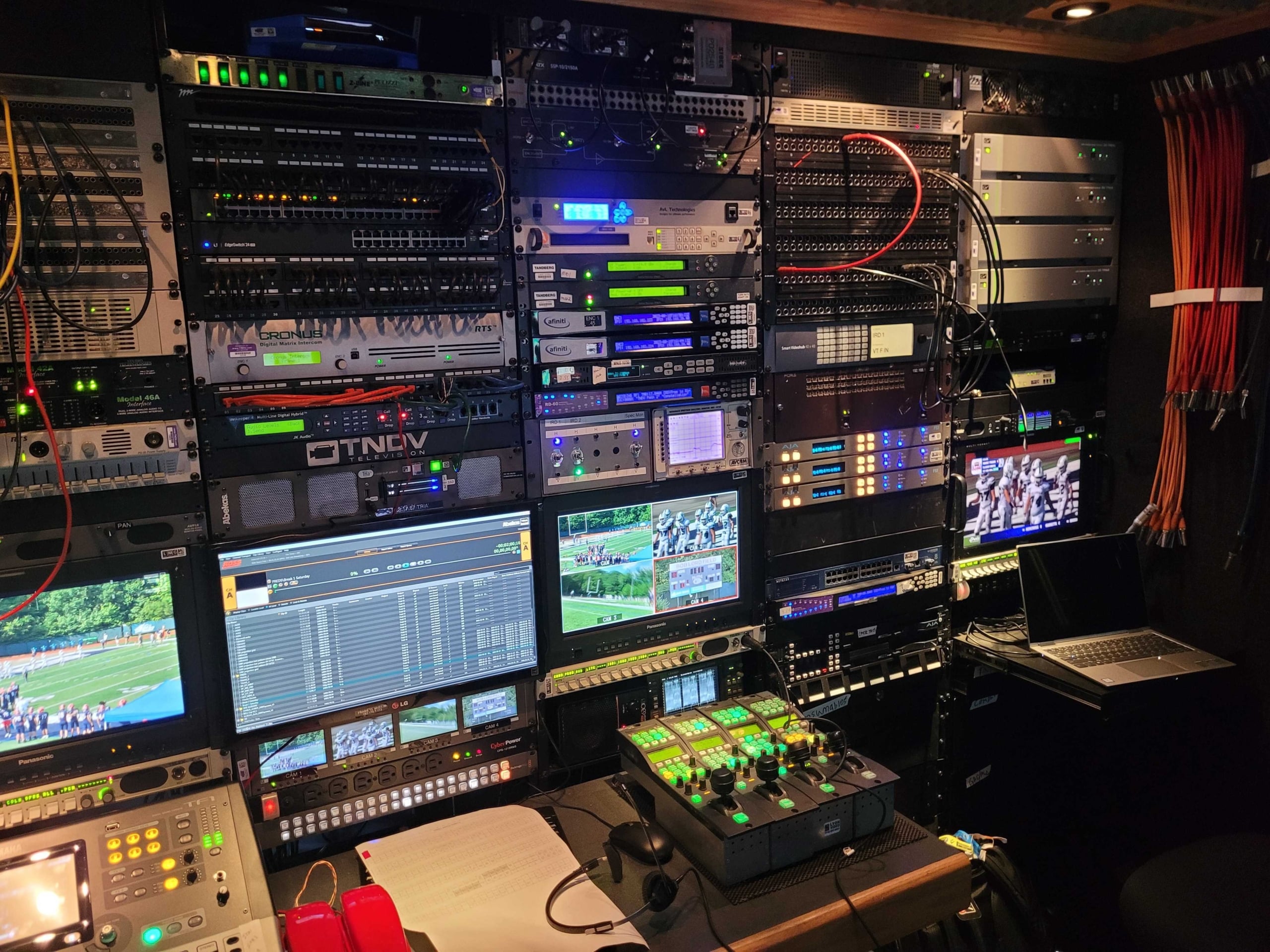

Astro utilizes a 40×40 BlackMagic Design HD/ASI Router, providing seamless signal management with HD frame syncs on all switcher inputs and two configurable integrated multiviewers. This setup ensures efficient routing and monitoring of video feeds, making Astro ideal for productions requiring precision and adaptability.

Communication Infrastructure

The unit is equipped with an RTS Cronus 32-Port Digital Matrix for reliable communication. This includes four RTS PL channels, four wet IFB channels, two VoIP phone lines, and two Verizon cellular POTS lines. This communication system ensures seamless coordination among crew members during live events and broadcasts.

Graphics Capabilities

Astro includes a Mac Mini running Playback Pro software, providing basic graphics support for productions. It is wired for a dual-channel graphics system, enabling the integration of custom visuals and overlays as needed.

Cable Inventory

Astro’s cable inventory is tailored for compact yet versatile setups, including 500 feet of TAC-8 fiber mult cable and additional connectors and converters to adapt to a variety of venue layouts. This inventory ensures Astro is ready to handle the unique requirements of diverse production environments.

Why Astro Stands Out

Astro’s combination of uplink and HD production capabilities makes it a unique and highly versatile solution for live events. Its compact size, onboard generator, and advanced systems allow it to deliver professional-grade results in remote or challenging locations. As part of the TNDV fleet, Astro benefits from the expertise and reliability of a trusted operator within the Live Media Group Holdings family.

Applications

Astro is ideal for sports events delivering live coverage with seamless uplink capabilities, remote productions in challenging locations, live streaming with high-quality broadcasts, corporate events requiring reliable audio and video production, and broadcast news for field reporting and remote coverage.

Technical Specifications

Conclusion

The Astro 26’ Ku Uplink / HD Production Hybrid is a compact, reliable solution for live events and remote productions. Its uplink capabilities, video and audio systems, and flexible design make it an indispensable tool for producers looking to achieve high-quality results. Contact TNDV or Live Media Group Holdings today to learn how Astro can elevate your next production.
