Collaboration 40’ 3G/HD Expando Overview

Collaboration 40’ 3G/HD Expando is a high-performance mobile production unit designed for live sports, concerts, corporate events, and major broadcasts. With its advanced video, audio, and routing systems, Collaboration is optimized for flexibility, efficiency, and professional-quality production. Operated by TNDV, part of the Live Media Group Holdings family, this unit provides a spacious expando setup, allowing production teams to manage complex, multi-camera events seamlessly.

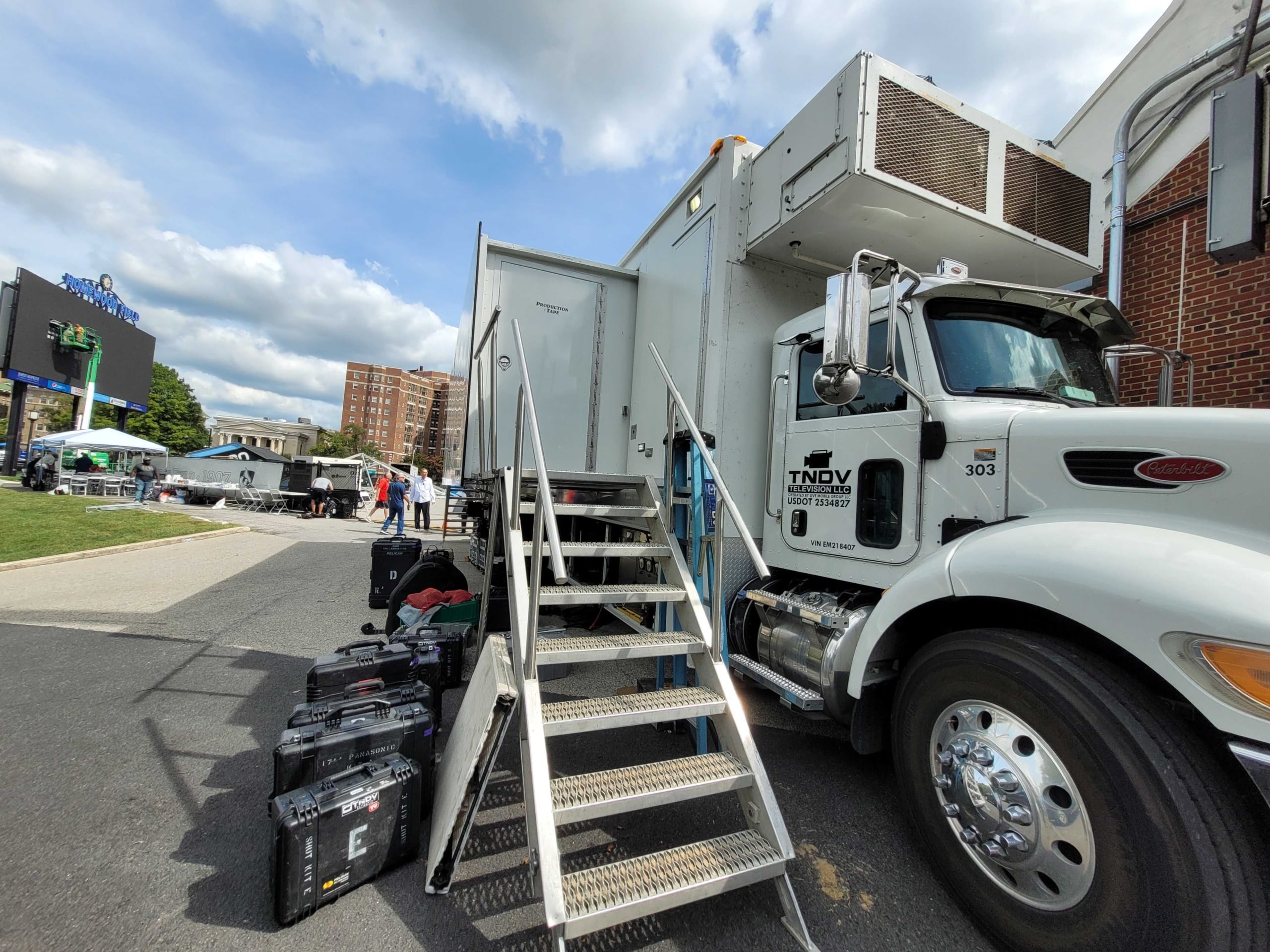

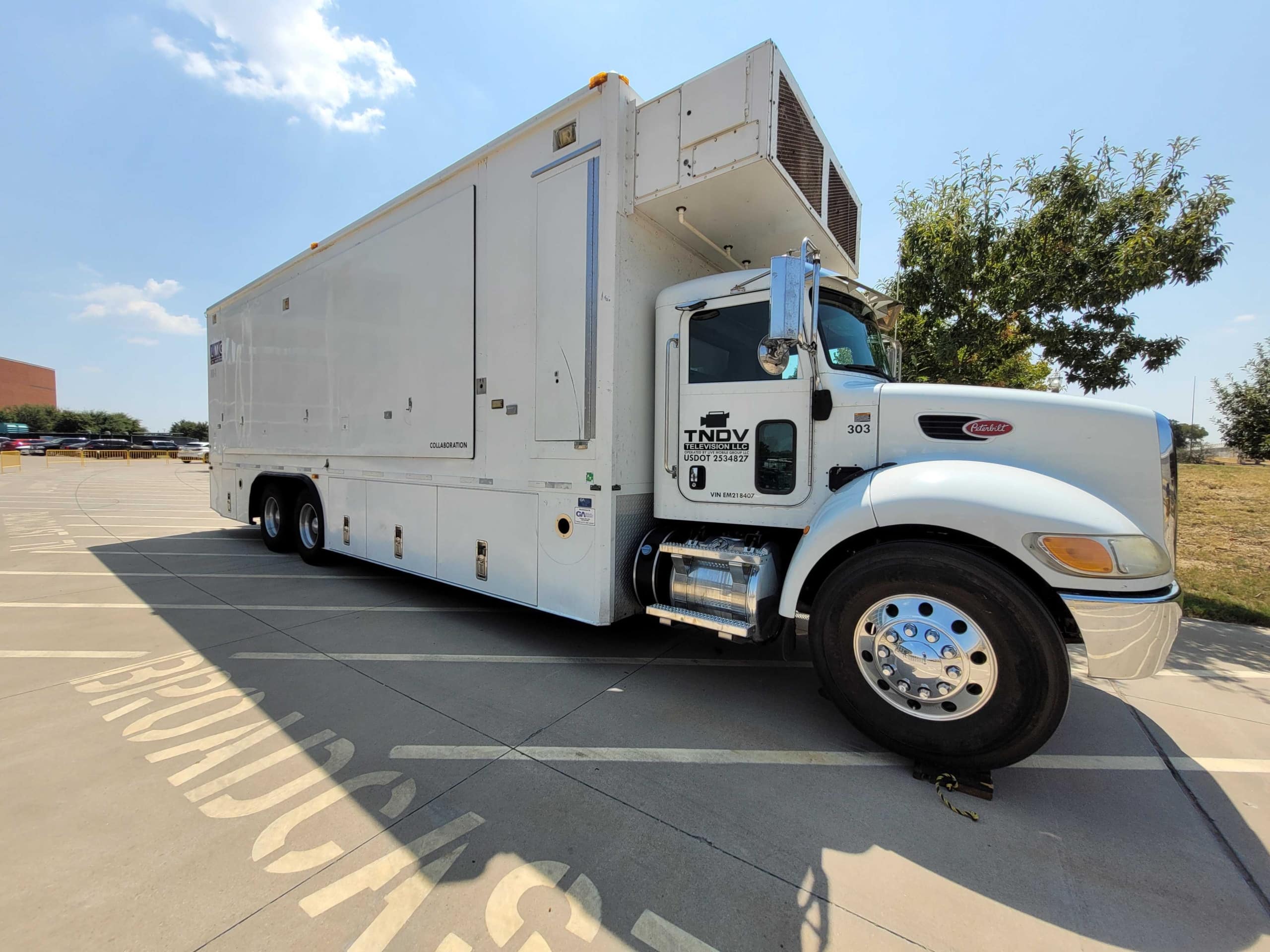

Dimensions and Configuration

Collaboration is built for mobility and space efficiency, measuring 45 feet in length, 13.8 feet in width (expanded), and 13.5 feet in height, with a gross vehicle weight of 46,000 pounds.

It operates on a three-phase 200-amp power system (208 volts) with 150 feet of feeder cable and camlock connectors, ensuring reliable operation at any venue.

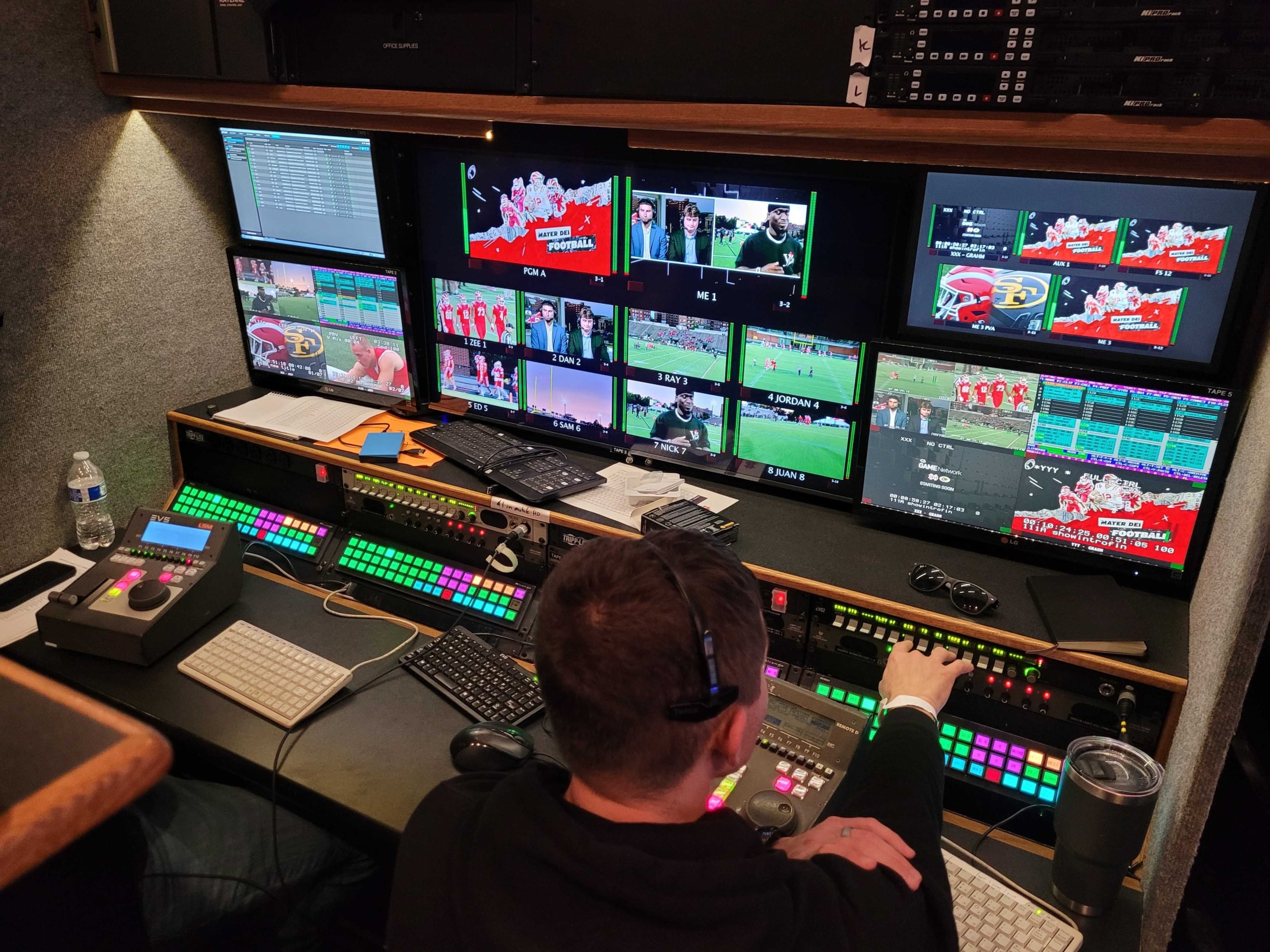

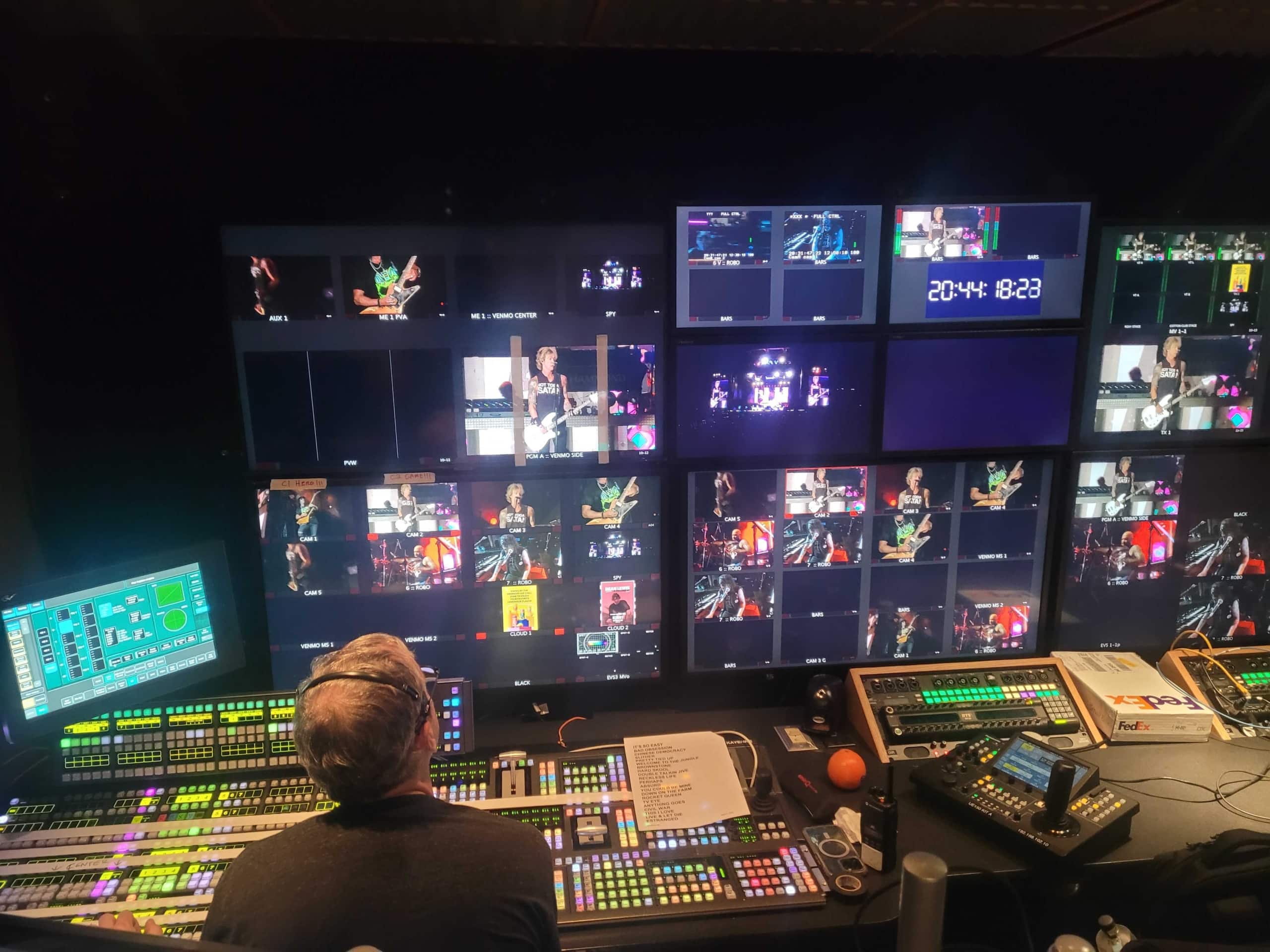

Video Production Technology

Collaboration is powered by a Grass Valley K-Frame Switcher, offering professional-grade switching and control capabilities. Key features include:

• Kayenne 3-Stripe 35-Button Control Panel with auxiliary support.
• 64 inputs and 32 outputs for multi-camera integration.
• 3.5 M/Es with advanced processing, including FlexiKey, Double Take, six keyers per ME, iDPMs, and chroma keyers.
• Integrated ImageStore for video asset management.

For replay and recording, Collaboration includes:

• Two EVS XT2 6-Channel LSM Servers.
• One EVS XT2 4-Channel Spotbox.
• One EVS X-File 3 for high-speed file transfers.
• One AJA HELO H.264 Recorder for streaming applications.
• Twelve AJA KiPro Rack Recorders for high-quality multi-source recording**.

This switching and replay system ensures smooth video control for live productions requiring precision and reliability.

Camera System

Collaboration is wired for up to 10 CCUs and includes eight Sony HDC-4300 Hybrid Fiber Cameras, supporting 1080p, 1080i, and 720p resolutions at 59.94, 29.97, and 23.98 frame rates. Key camera features include:

• Eight handheld viewfinders and eight 7-inch studio LCD viewfinders.
• Two Fujinon 20x ENG lenses for long-range shots.
• Four Fujinon 13×4.5 wide-angle lenses for panoramic coverage.
• 3x SuperMotion Available for high-speed replays.

This high-quality camera setup provides dynamic coverage, making Collaboration ideal for fast-paced, multi-camera productions.

Audio Capabilities

Collaboration features a Soundcraft Vi3000 Digital Mixing Console, delivering studio-quality audio production. Key specifications include:

• 24 faders and 96 DSP inputs for precise audio control.
• 32×24 analog, 128×128 MADI channel support.
• One 64×32 fiber stagebox for expanded audio routing.

Additional audio equipment includes:

• One Avid Pro Tools 128-Channel Audio Recording Rig.
• One Sound Devices Pix 270i 64-Channel Audio Recorder.
• Two Fostex Speakers and three Throwdown HD Monitors.
• Four SDI-HDMI converters, four Fiber Rattler sets, and two Decimator MD-Cross Converters.

Collaboration’s audio infrastructure ensures pristine sound quality, making it ideal for live concerts, broadcast productions, and corporate events.

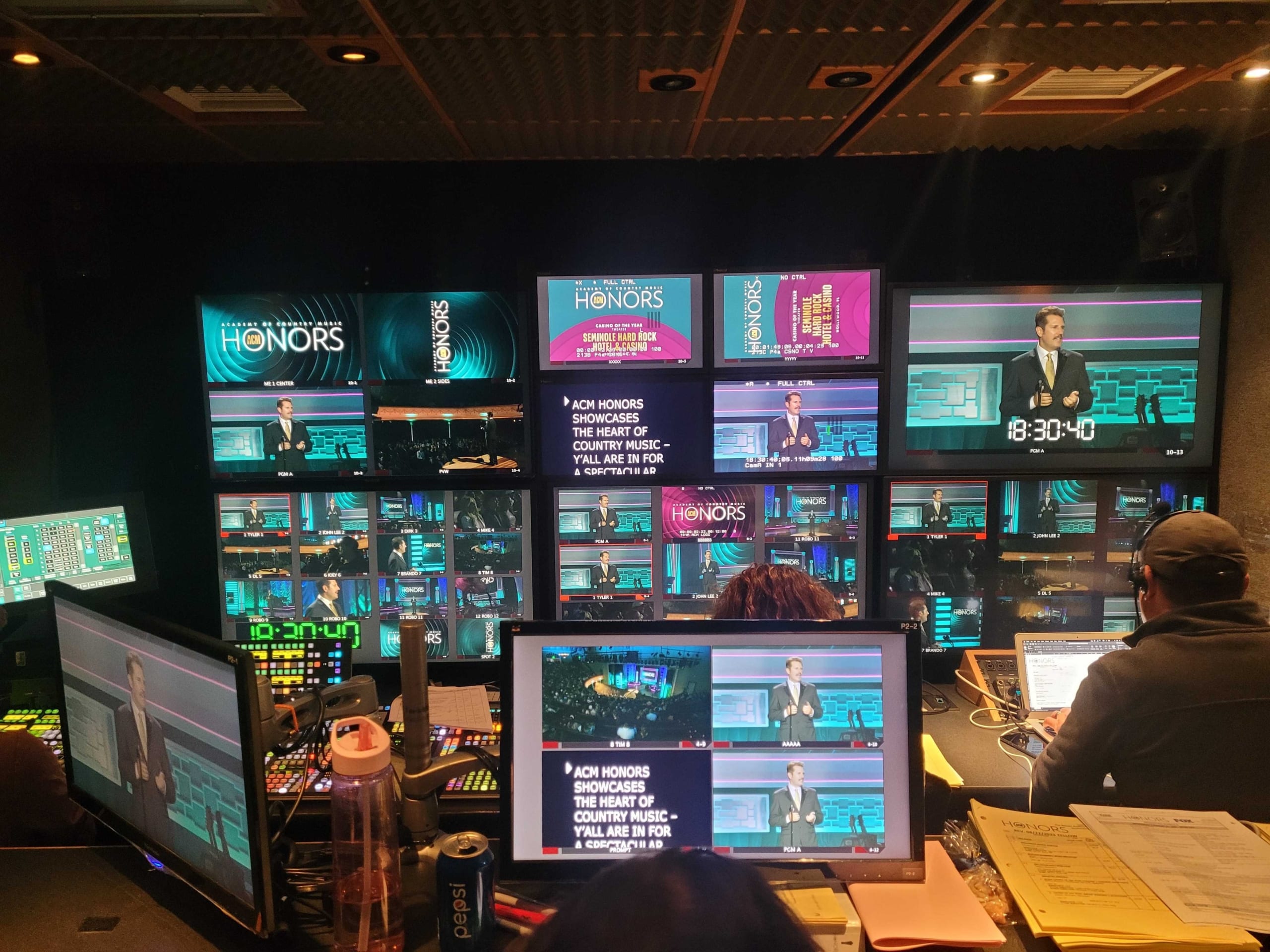

Routing and Multiview

Collaboration’s signal routing and multiviewer system is powered by an NVision 144×288 3G/HD Router, featuring:

• 32×32 audio embed/de-embed capabilities.
• 10 configurable integrated multiviewer outputs.
• 16 3G/HD frame syncs for seamless video processing.
• TSL Tallyman Tally Interface for streamlined production workflows.

This advanced routing system ensures smooth management of video feeds and real-time production monitoring.

Communication Infrastructure

Collaboration is equipped with an RTS ADAM 112-Port Digital Matrix, ensuring reliable communication across production teams. Key features include:

• 12 RTS PL channels for crew communication.
• Four RTS telephone interfaces for external connectivity.
• Four QKT telephone interfaces for added control.
• Eight wet IFB channels for talent communication.
• Two Biscuit Boxes for expanded communication options.
• Two VoIP phone lines for remote connectivity.

This advanced communication system provides seamless coordination for live event production.

Graphics Capabilities

Collaboration is wired for a dual-channel CG system, including:

• One Ross XPression Dual-Channel Graphics System (SW version 10.5).

This graphics setup supports live overlays, branding, and professional-grade animations, making Collaboration perfect for sports broadcasts, corporate events, and high-end productions.

Cable Inventory

Collaboration comes fully equipped with an extensive cable inventory to handle large-scale productions:

• 4000 feet of hybrid fiber optic camera cable.
• 1200 feet of DT-12 cable.
• One 1000-foot TAC-12 fiber mult.
• One 500-foot TAC-12 fiber mult.

This ensures seamless connectivity across expansive event spaces.

Why Collaboration Stands Out

Collaboration is designed for mid-to-large-scale productions, delivering superior video quality, dynamic camera control, and premium audio production. Its expando design offers a spacious workflow, and its cutting-edge technology ensures reliable execution for multi-camera live broadcasts. As part of TNDV and Live Media Group Holdings, it is supported by an expert team, ensuring flawless performance at every event.

Applications

Collaboration is ideal for:

• Sports broadcasts requiring multi-camera coverage and instant replay.
• Concerts and live events needing premium audio and video production.
• Corporate productions and conferences with high-end streaming and presentation needs.
• Live award shows and entertainment broadcasts demanding seamless execution.

Technical Specifications

Conclusion

Collaboration 40’ 3G/HD Expando is a powerful and adaptable mobile production unit designed for high-quality, live event production. With top-tier video, audio, and routing technology, Collaboration delivers unparalleled performance for large-scale productions and broadcasts.

For more information or to book Collaboration for your next event, contact TNDV today.

• Phone: 877-959-8638
• Email: contact@tndv.com
