Exclamation 53’ UHD/3G/HD Double Expando Overview

Exclamation 53’ UHD/3G/HD Double Expando is a state-of-the-art mobile production unit built to handle high-demand live events with cutting-edge technology. With its robust video, audio, and communication systems, Exclamation is ideal for sports broadcasts, concerts, corporate events, and award shows. Operated by TNDV, part of Live Media Group Holdings, this unit provides unmatched reliability, flexibility, and performance for large-scale productions.

Dimensions and Configuration

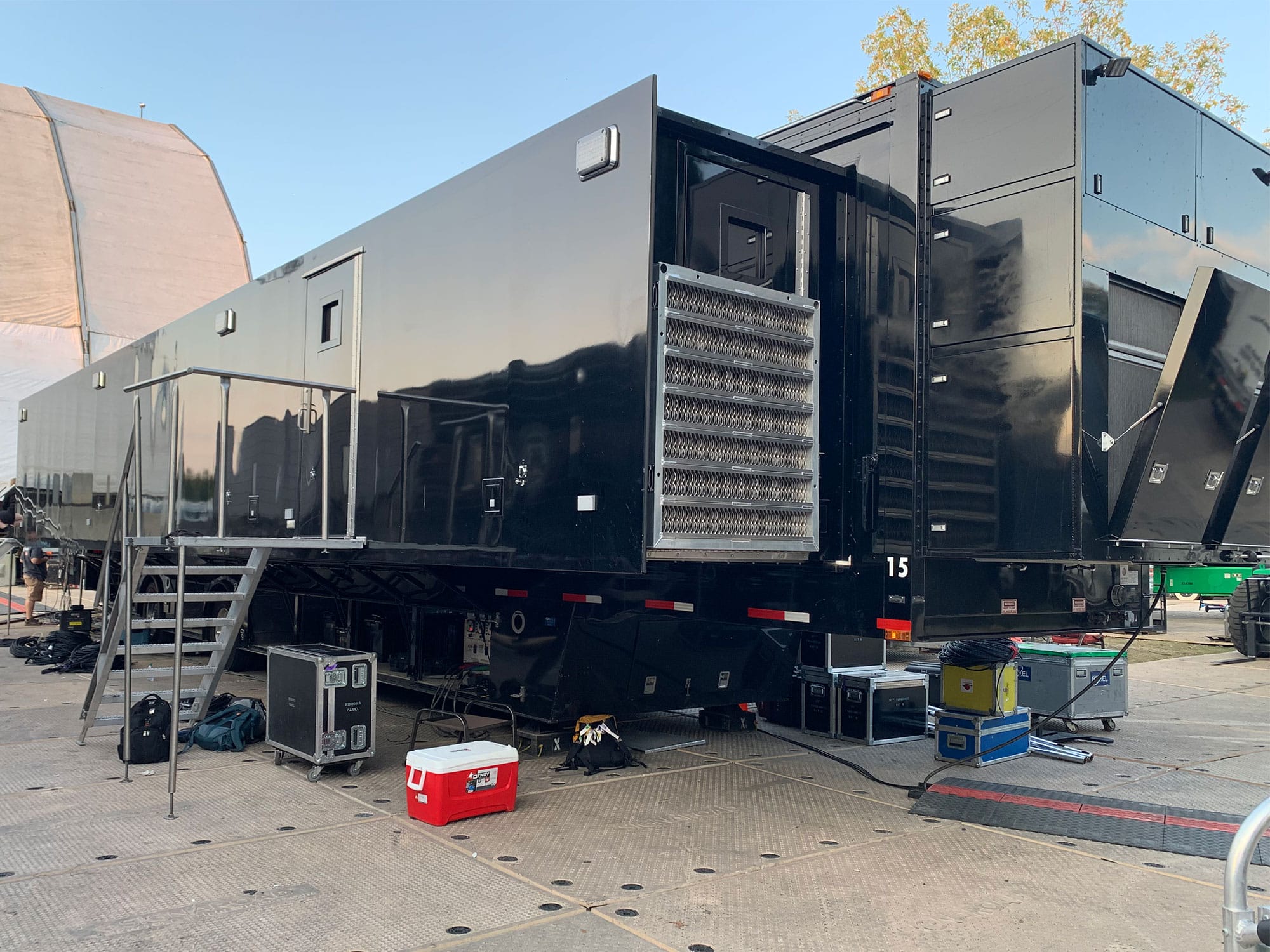

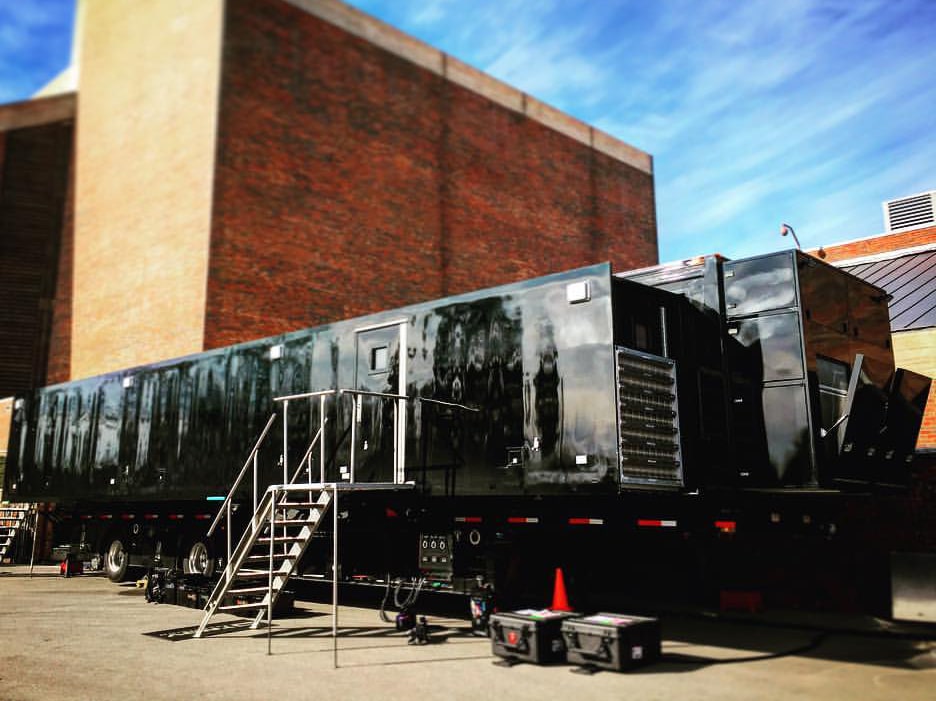

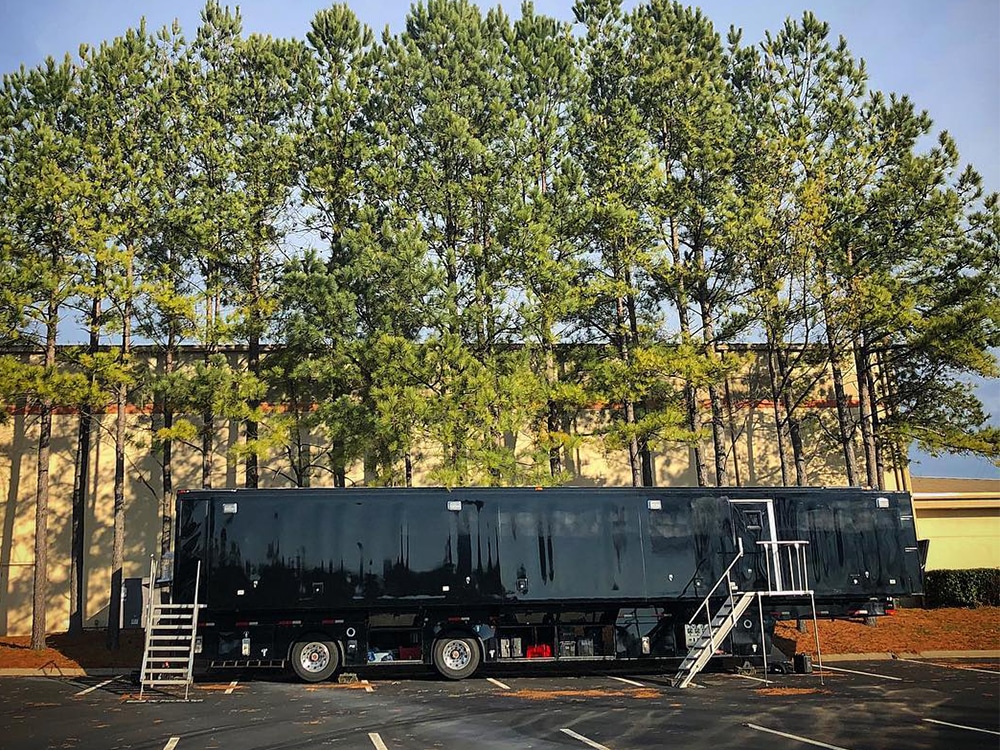

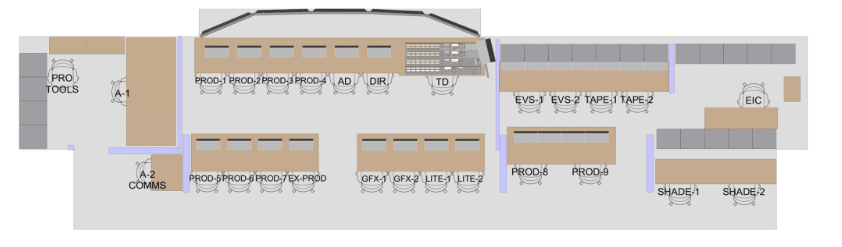

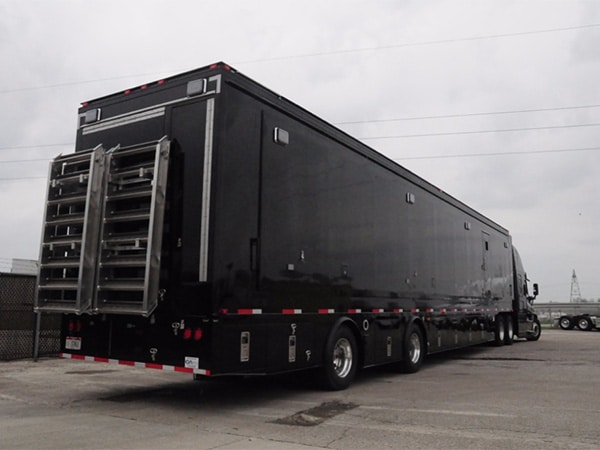

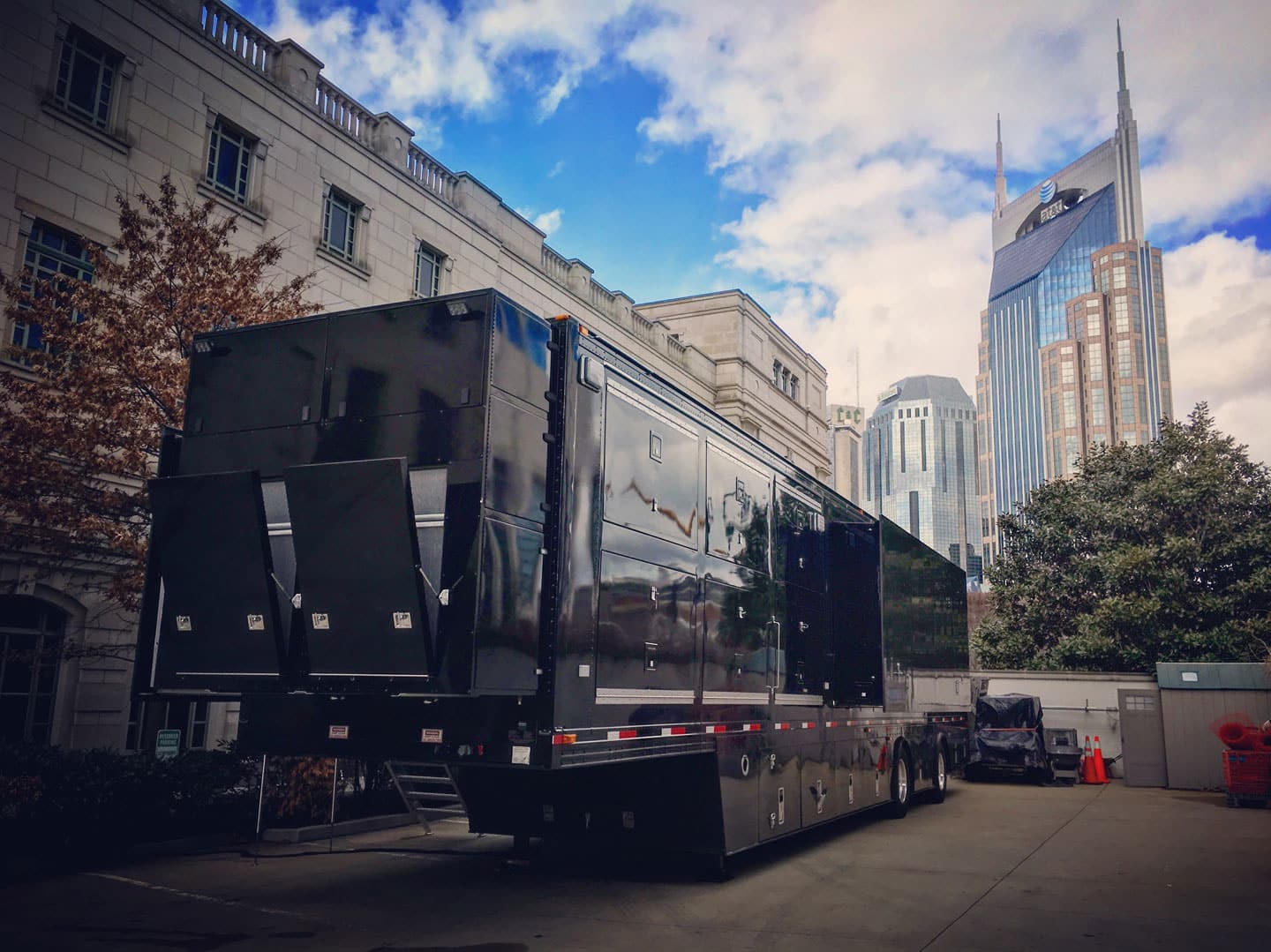

Exclamation is a double-expando unit designed to maximize interior space while remaining highly mobile. It measures 61.5 feet in length, 17.5 feet in width (expanded), and 13.5 feet in height, with a gross vehicle weight of 80,000 pounds. The unit operates on a three-phase 200-amp power system (208 volts) with 200 feet of feeder cable and camlock connectors. Its expansive working footprint allows production teams to operate efficiently, even in high-demand environments.

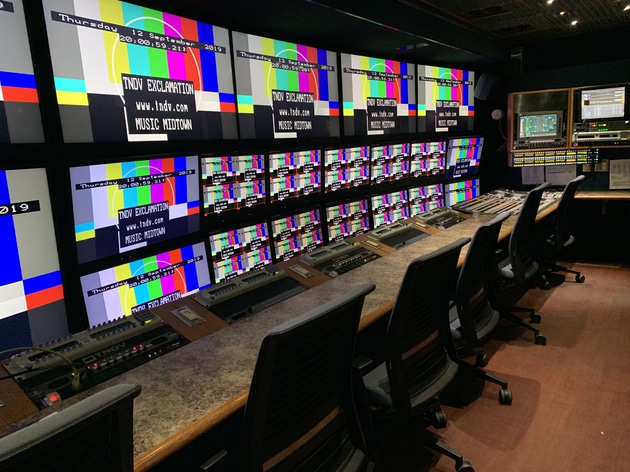

Video Production Technology

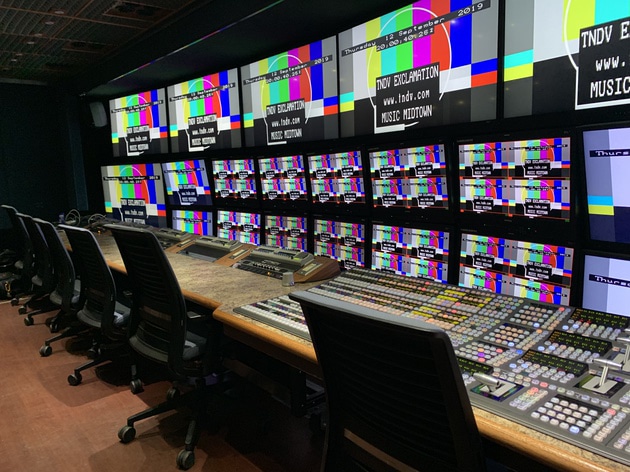

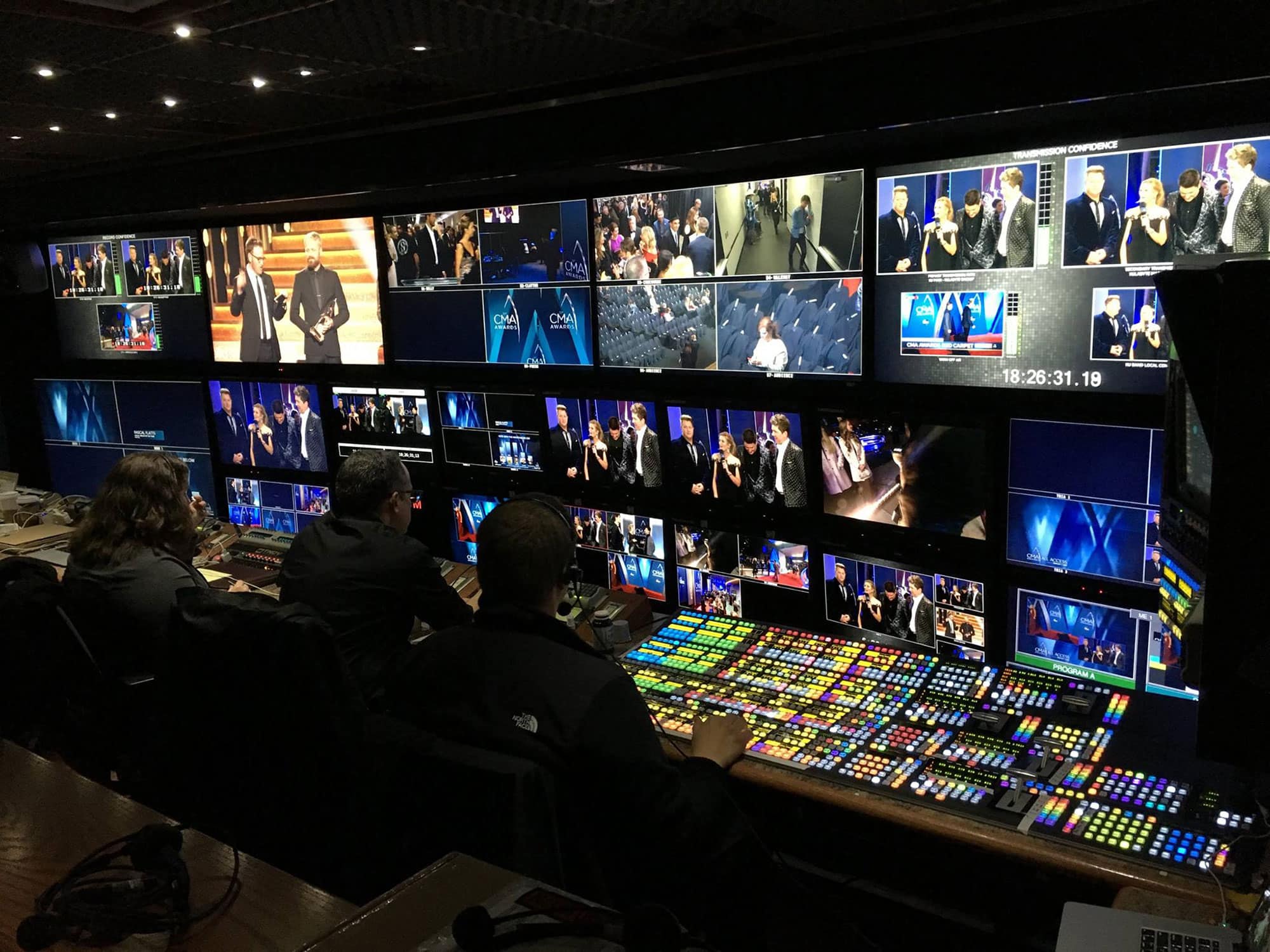

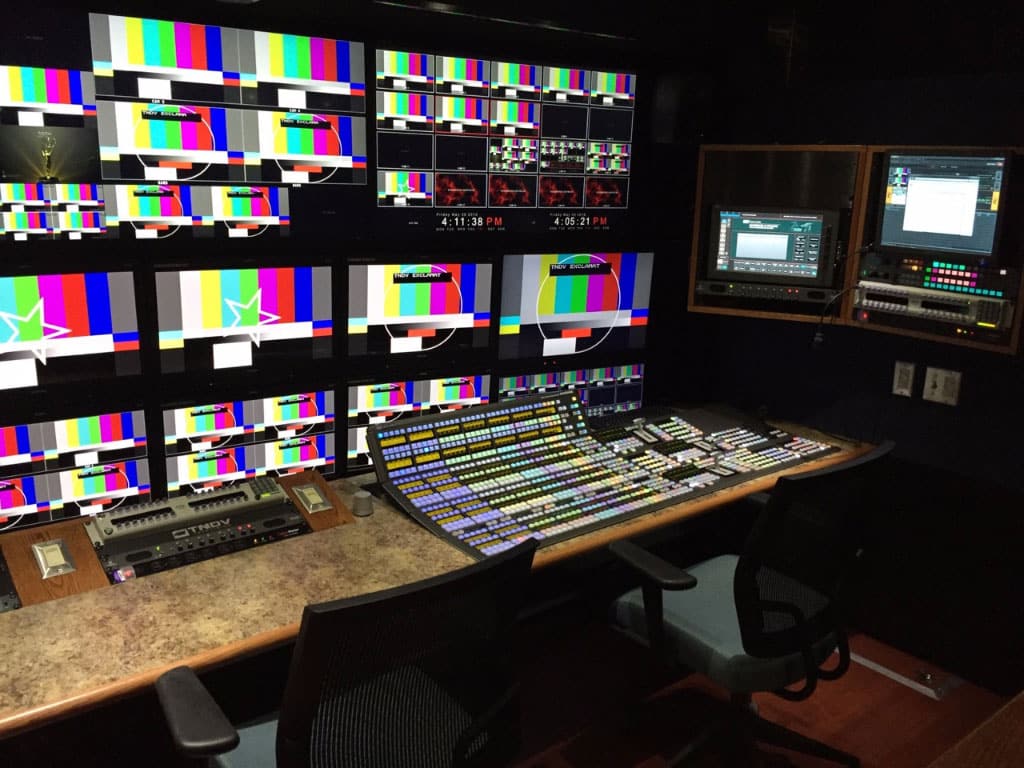

Exclamation is powered by a Grass Valley K-Frame Switcher, providing world-class video production capabilities. Key features include:

• Kayenne 4-Stripe 35-Button Control Panel with auxiliary support.
• 64 inputs and 48 outputs, allowing for seamless video integration.
• 4.5 M/Es, with advanced effects including FlexiKey, Double Take, six keyers per ME, iDPMs, and chroma keyers.
• Integrated ImageStore for video asset management and playback.

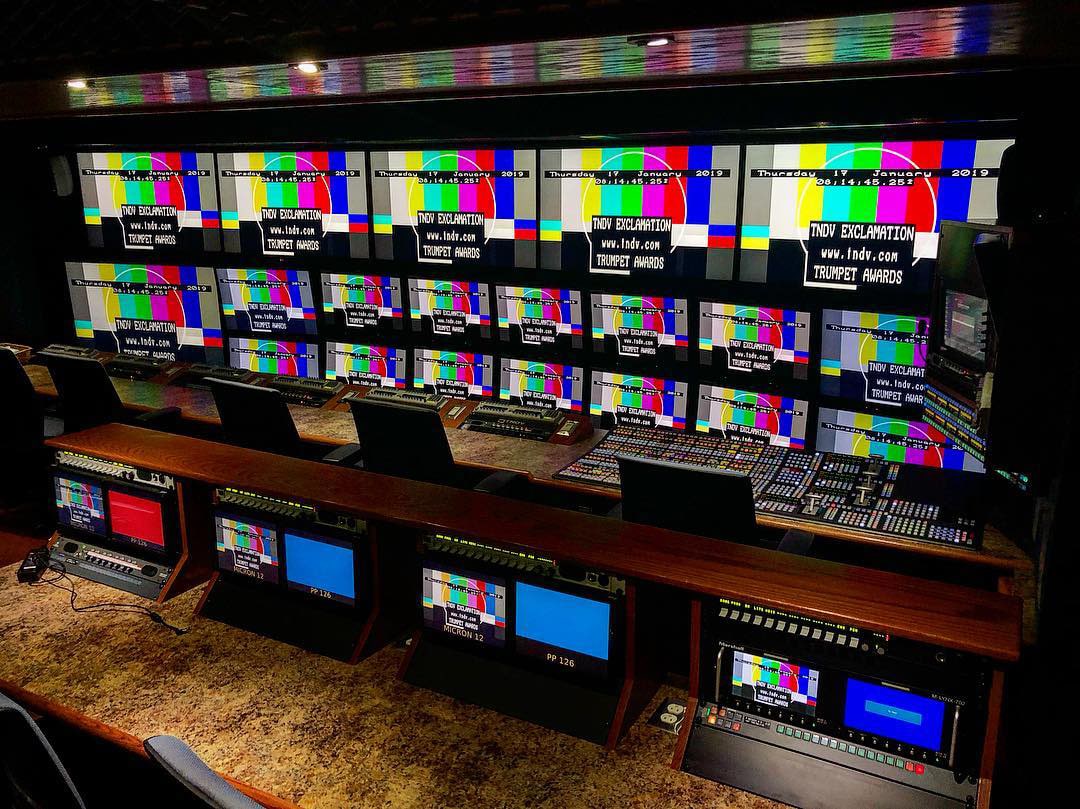

For replay and recording, Exclamation includes:

• Two EVS XT3 8-Channel Servers and one EVS XT3 6-Channel LSM Server with Spotbox functionality.
• One EVS X-File 3 for high-speed file management.
• One Abekas Tria 3-Channel Clip Server.
• 14 AJA KiPro Ultra Recorders for seamless multi-source recording.
• One AJA HELO H.264 Recorder for encoding and streaming applications.

This production setup ensures industry-leading switching, replay, and video control for live broadcasts and large-scale productions.

Camera System

Exclamation is wired for up to 20 CCUs and includes 12 Sony HDC-4300 Hybrid Fiber Cameras, supporting resolutions up to 2160p, 1080p, 1080i, and 720p at 59.94, 29.97, and 23.98 frame rates. Additional camera specifications include:

• Eight handheld viewfinders and eight 7-inch studio LCD viewfinders.
• Four Fujinon 20x ENG lenses for long-range shots.
• Six Fujinon 13×4.5 wide-angle lenses for expansive coverage.
• 3x SuperMotion Available for enhanced slow-motion replay capabilities.

This comprehensive camera setup ensures flexibility and high-quality video capture across various live production environments.

Audio Capabilities

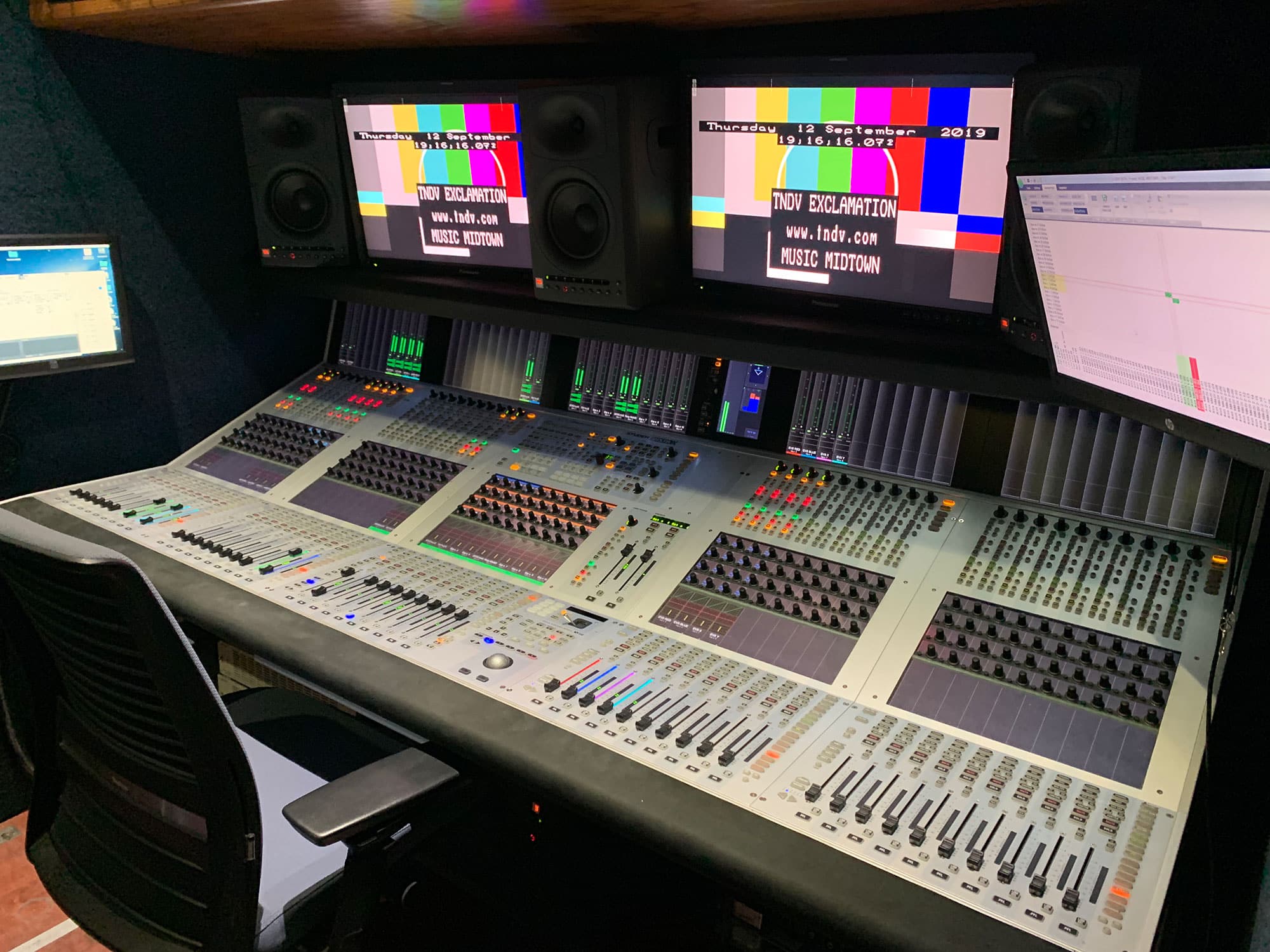

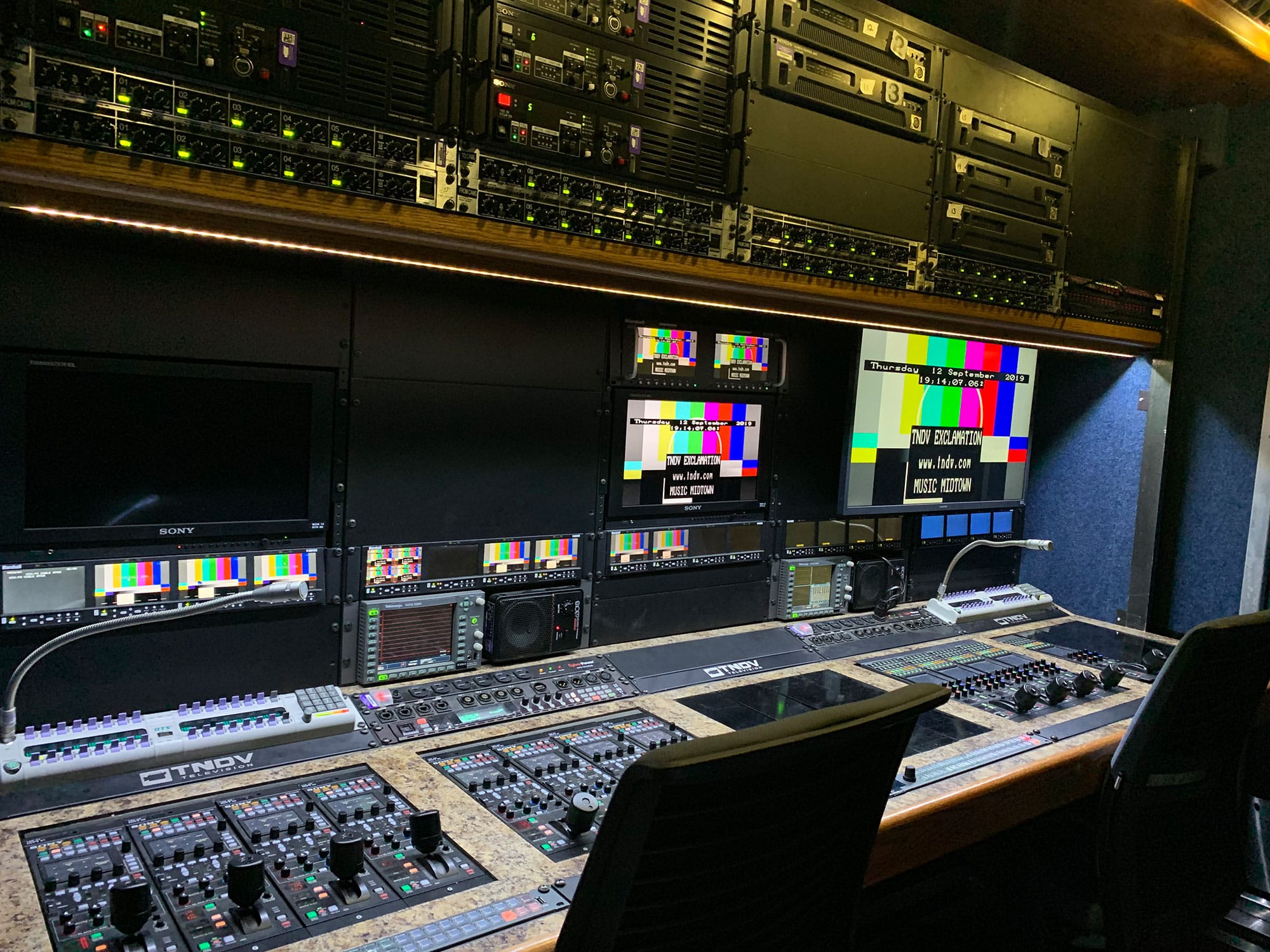

Exclamation features a Studer Vista X Digital Mixing Console, designed for high-fidelity audio production. Key specifications include:

• 52 faders and 344 DSP inputs, enabling full control over complex mixes.
• Full 5.1 Surround Sound mixing capabilities.
• 32×32 analog, 36×36 AES, 256×256 MADI, and 64×64 Dante channel support.
• Wired for up to four 64×32 fiber stageboxes, with two currently installed.

Additional audio equipment includes:

• One Soundboard Audio Clip Server.
• One Avid Pro Tools 128-Channel Audio Recording Rig.
• Two Sound Devices Pix 270i 64-Channel Audio Recorders.
• One Waves SuperRack 64-Channel with Creative Access Support.
• Two Fostex Speakers and three Throwdown HD Monitors.
• Four SDI-HDMI converters, four Fiber Rattler sets, and two Decimator MD-Cross Converters.

This configuration ensures top-tier audio quality and flexibility for a variety of live events.

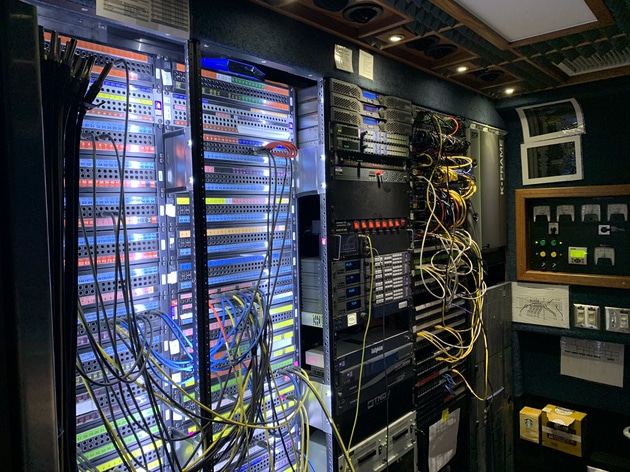

Routing and Multiview

Exclamation’s signal management is powered by an Imagine Communications 168×224 3G/HD Router, featuring:

• 16 configurable integrated multiviewer outputs.
• 12 quad split multiviewers for advanced monitoring.
• 12 Riedel Framesyncs with embed/de-embed capabilities.
• One For-A 5-Channel Color Corrector/UDC.
• Four AJA FS-4s and four Cobalt UDCs for up/down/cross conversion.

This sophisticated routing system ensures seamless signal processing and real-time video control.

Communication Infrastructure

Exclamation is equipped with an RTS ADAM 160-Port Digital Matrix Intercom System, delivering reliable communication throughout productions. Features include:

• 12 RTS PL channels for wired communication.
• Six RTS telephone interfaces for external connectivity.
• Eight wet IFB channels for talent communication.
• Two Biscuit Boxes for additional interface control.
• VoIP phone lines and Verizon 5G internet capability for remote access and coordination.

This infrastructure guarantees smooth and effective communication across production teams.

Graphics Capabilities

Exclamation is wired for up to two dual-channel CG systems, including:

• One Ross XPression 4K Dual-Channel Graphics System (SW version 10.5).

This configuration ensures professional-grade graphics, overlays, and real-time visual elements for broadcasts.

Cable Inventory

Exclamation comes with an extensive cable inventory to accommodate complex production setups:

• 4000 feet of hybrid fiber optic camera cable.
• 2500 feet of DT-12 cable.
• Two 1000-foot TAC-12 fiber mults.
• Two 500-foot TAC-12 fiber mults.

This extensive infrastructure allows seamless connectivity across different production environments.

Why Exclamation Stands Out

Exclamation is designed for large-scale, high-profile productions that demand exceptional quality and reliability. Its double-expando layout, 4K capabilities, multi-camera system, industry-leading switcher, and professional-grade audio system make it a premier choice for major live events. As part of TNDV and Live Media Group Holdings, it is backed by a team of industry experts ensuring seamless execution.

Applications

Exclamation is ideal for:

• Sports broadcasts requiring multi-camera, high-frame-rate coverage.
• Concerts and music festivals demanding superior audio and dynamic camera work.
• Corporate events and conferences with live streaming and real-time production needs.
• Award shows and red carpet events needing high-end broadcast-quality production.

Technical Specifications

Conclusion

Exclamation 53’ UHD/3G/HD Double Expando is a powerhouse mobile production unit designed for high-end broadcasts and live events. With its advanced video, audio, and communication infrastructure, Exclamation delivers unparalleled performance and flexibility. Whether covering a major sporting event, corporate conference, or live concert, Exclamation is built to exceed expectations. Contact TNDV today to learn how Exclamation can elevate your next production.
