Inspiration 40’ 3G/HD Expando Overview

Inspiration 40’ 3G/HD Expando is a versatile and high-performance mobile production unit designed for sports, concerts, corporate events, and live broadcasts. Equipped with a powerful Grass Valley switcher, multi-camera setup, and professional-grade audio system, Inspiration is optimized for dynamic, multi-camera live productions. Operated by TNDV, a division of Live Media Group Holdings, this unit ensures seamless event execution with broadcast-quality results.

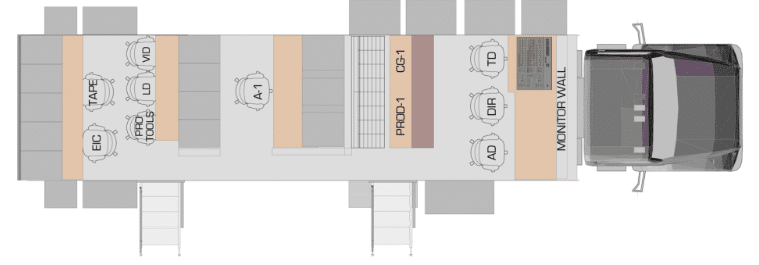

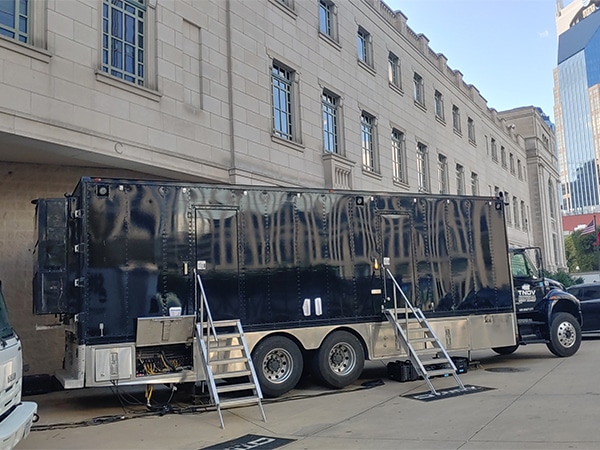

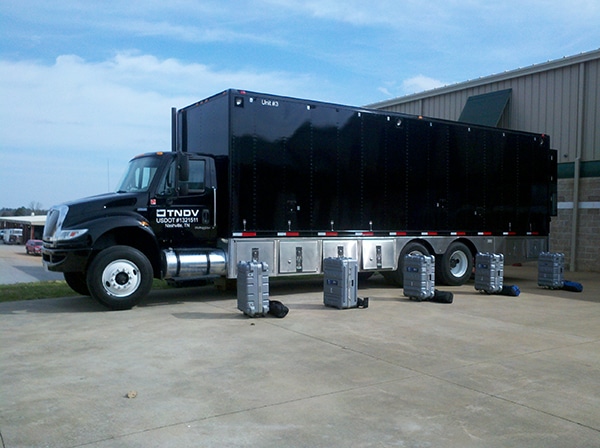

Dimensions and Configuration

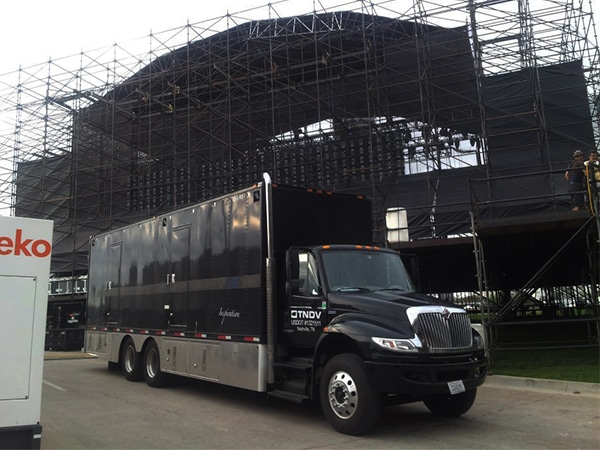

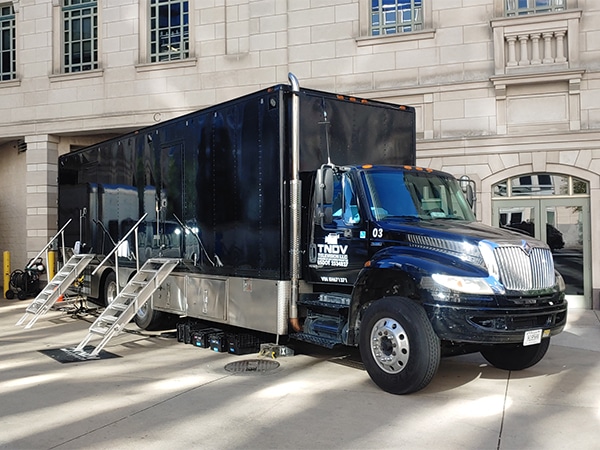

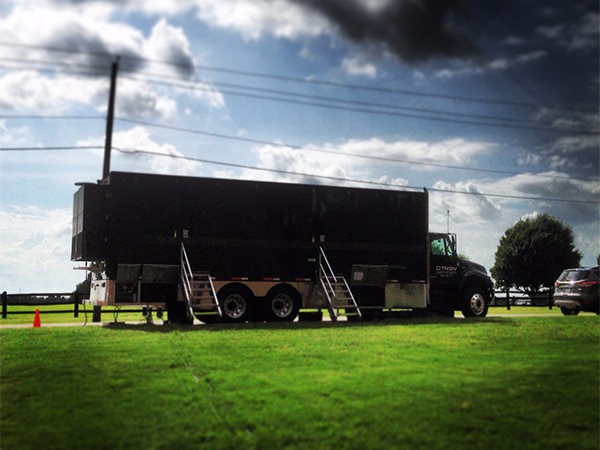

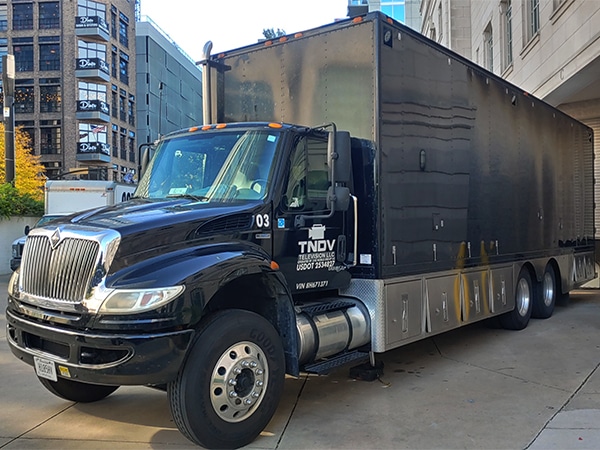

Inspiration is designed for efficiency and mobility, measuring 45 feet in length, 14 feet in width (expanded), and 13.5 feet in height, with a gross vehicle weight of 46,000 pounds.

The unit operates on a single-phase 150-amp power system (208 volts) with 150 feet of feeder cable and camlock connectors, ensuring consistent operation in any venue.

Video Production Technology

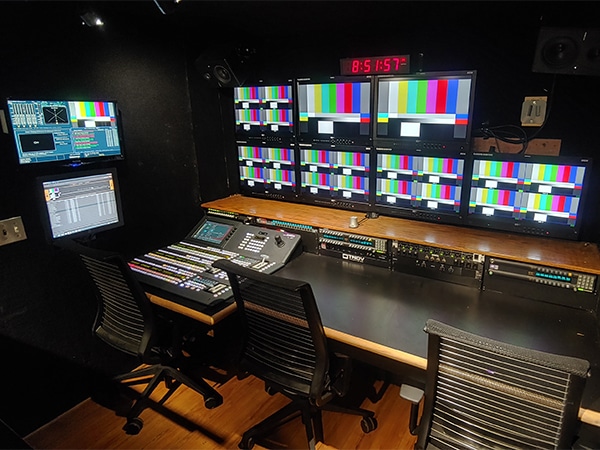

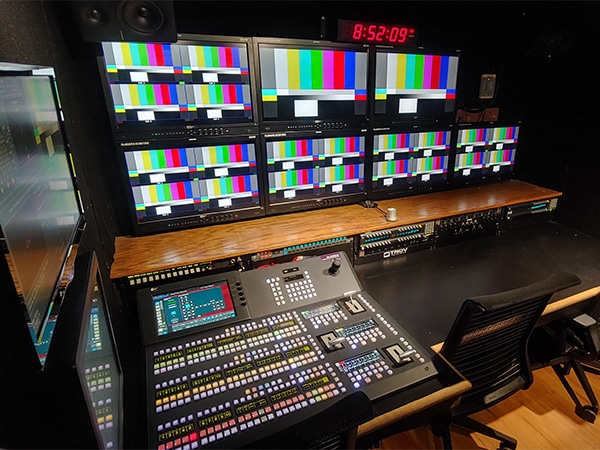

At the heart of Inspiration’s video system is the Grass Valley K-Frame Switcher, providing advanced video processing and control. Key features include:

• Korona 3-Stripe 25-Button Control Panel for precise switching.
• 32 inputs and 16 outputs for flexible video integration.
• 2.5 M/Es, featuring FlexiKey, Double Take, six keyers per ME, iDPMs, and chroma keyers.
• Integrated ImageStore for video asset management.

For replay and recording, Inspiration includes:

• One EVS XT2 6-Channel LSM Server.
• One EVS X-File 3 for fast file transfers.
• One AJA HELO H.264 Recorder for streaming and digital recording.
• Twelve AJA KiPro Rack Recorders for high-quality multi-source recording.

This cutting-edge switcher and replay system makes Inspiration ideal for fast-paced productions requiring seamless transitions and real-time content playback.

Camera System

Inspiration is wired for up to 10 CCUs and includes eight Hitachi SK-HD1200 Hybrid Fiber Cameras, capable of 1080p, 1080i, and 720p at 59.94, 29.97, and 23.98 frame rates. Additional camera features include:

• Four handheld viewfinders and four 7-inch studio LCD viewfinders.
• Two Fujinon 20x ENG lenses for long-range shots.
• Four Canon 11×4.7 wide-angle lenses for broader coverage.
• TAC Fiber Adapters Available for expanded flexibility.

With a professional-grade camera setup, Inspiration ensures high-quality image capture for sports, concerts, and corporate events.

Audio Capabilities

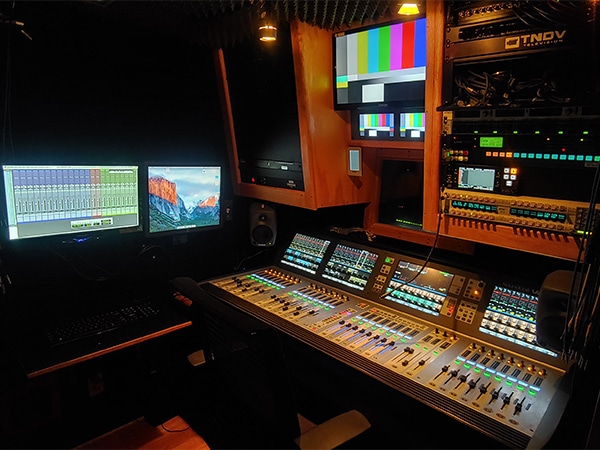

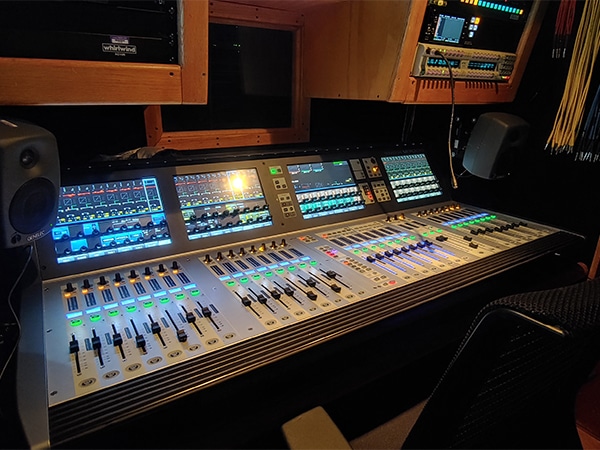

Inspiration is equipped with a Soundcraft Vi3000 Digital Mixing Console, providing studio-quality audio processing. Key specifications include:

• 24 faders and 96 DSP inputs for precise audio control.
• 32×24 analog and 128×128 MADI channel support.
• One 64×32 fiber stagebox for expanded audio routing.

Additional audio equipment includes:

• One Avid Pro Tools 128-Channel Audio Recording Rig.
• One Sound Devices Pix 270i 64-Channel Audio Recorder.
• Two Fostex Speakers and three Throwdown HD Monitors.
• Four SDI-HDMI converters, four Fiber Rattler sets, and two Decimator MD-Cross Converters.

This high-quality audio system ensures premium sound clarity, making Inspiration ideal for music productions, sports broadcasts, and corporate events.

Routing and Multiview

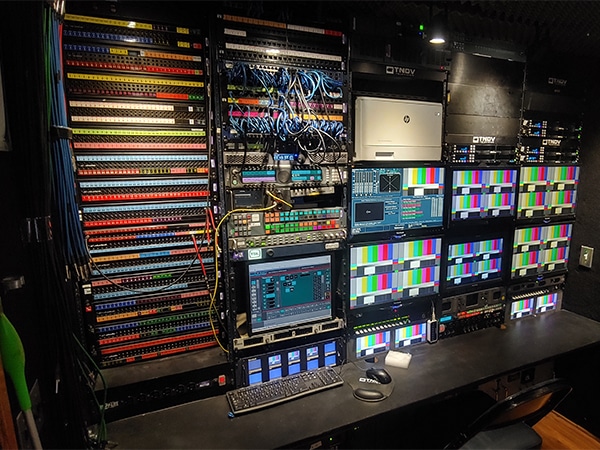

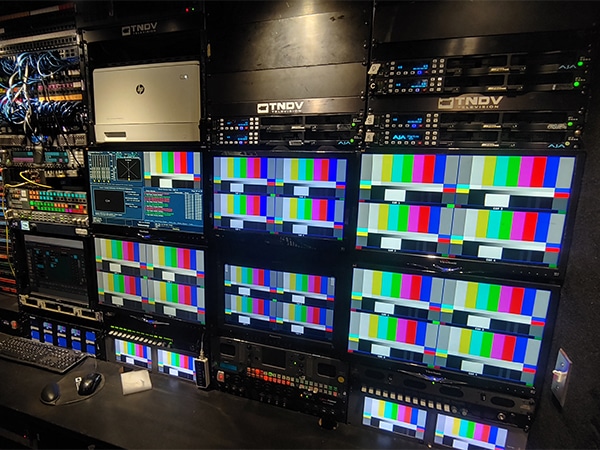

Inspiration’s signal routing system is powered by an Imagine Communications 96×96 3G/HD Router, featuring:

• 4×4 audio embed/de-embed capabilities.
• 12 configurable integrated multiviewer outputs.
• Four quad split multiviewers for real-time monitoring.
• 12 3G/HD frame syncs for seamless video processing.
• TSL Tallyman Tally Interface for efficient production coordination.

This advanced signal processing and monitoring system ensures a streamlined workflow for multi-camera live productions.

Communication Infrastructure

Inspiration is equipped with an RTS ODIN 112-Port Digital Matrix, providing clear and reliable communication across production teams. Key features include:

• 12 RTS PL channels for crew communication.
• Four RTS telephone interfaces for external calls.
• Four QKT telephone interfaces for additional connectivity.
• Eight wet IFB channels for talent communication.
• Two Biscuit Boxes for expanded control.
• Two VoIP phone lines for remote coordination.

This comprehensive communication system ensures flawless coordination during live productions.

Graphics Capabilities

Inspiration is wired for a dual-channel CG system, including:

• One Ross XPression Dual-Channel Graphics System (SW version 10.5).

This state-of-the-art graphics system supports live branding, scoreboards, and animated overlays, making it perfect for professional sports broadcasts and corporate events.

Cable Inventory

Inspiration includes an extensive cable inventory, ensuring flexibility and efficiency in any venue.

• 3000 feet of hybrid fiber optic camera cable.
• 1200 feet of DT-12 cable.
• One 1000-foot TAC-12 fiber mult.
• One 500-foot TAC-12 fiber mult.

This comprehensive cable inventory supports seamless setup and connectivity.

Why Inspiration Stands Out

Inspiration is designed for mid-to-large-scale productions, offering high-quality video, advanced camera systems, and premium audio processing. Its expando layout provides a spacious working environment, making it perfect for multi-camera live productions. As part of TNDV and Live Media Group Holdings, it is backed by an expert technical team, ensuring seamless execution at every event.

Applications

Inspiration is perfect for:

• Sports broadcasts requiring dynamic multi-camera coverage and instant replays.
• Concerts, live events, and houses of worship needing broadcast-quality video and premium audio.
• Corporate productions and conferences with high-end streaming and presentation needs.
• Live award shows and entertainment broadcasts demanding seamless execution and broadcast-level production quality.

Technical Specifications

Conclusion

Inspiration 40’ 3G/HD Expando is a powerful and versatile mobile production unit, built to deliver superior results for live broadcasts, sports, corporate events, and music productions. With industry-leading video and audio systems, seamless communication infrastructure, and UHD capabilities, Inspiration ensures world-class production quality.

For more information or to book Inspiration for your next production, contact TNDV today.
