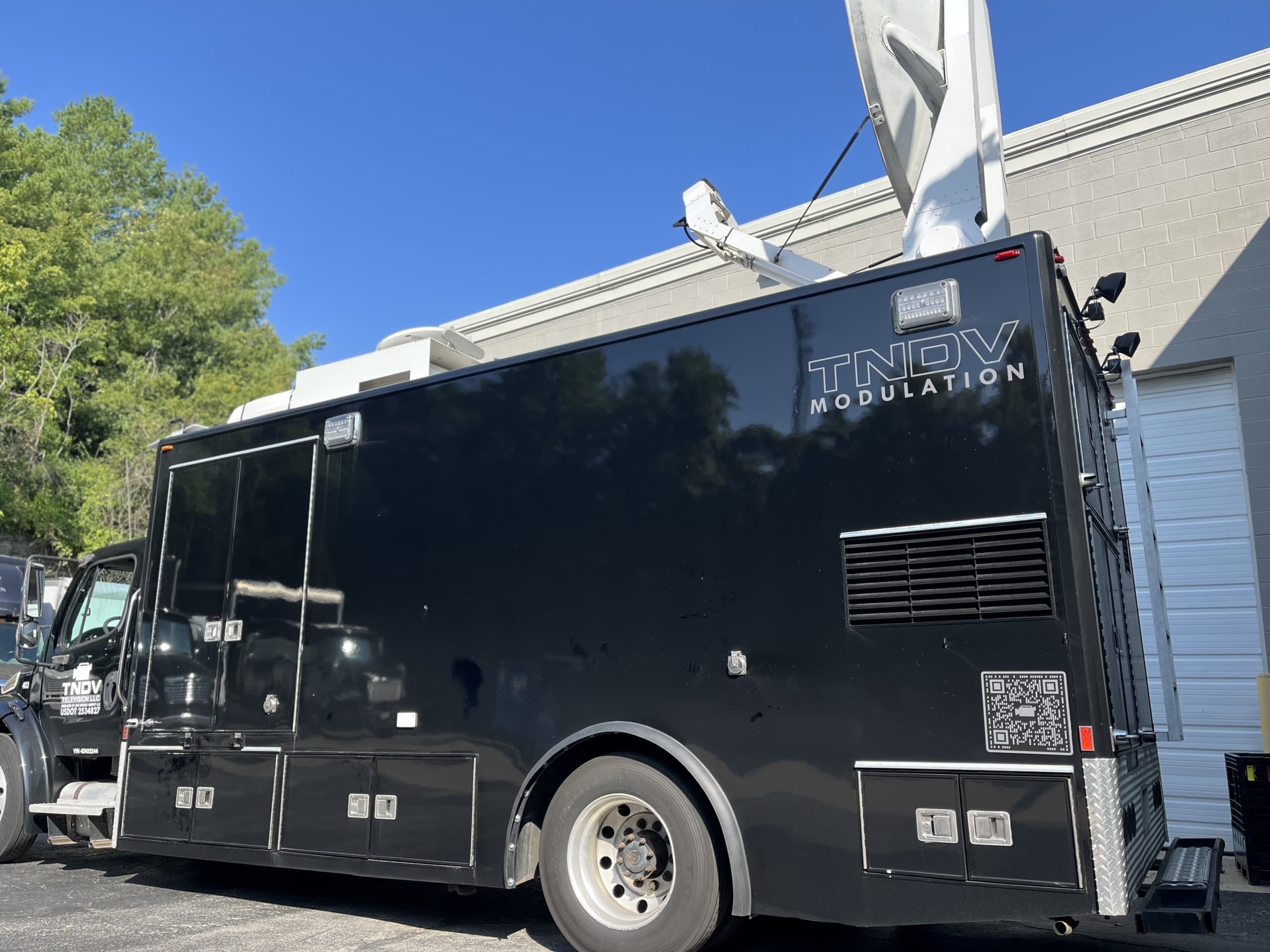

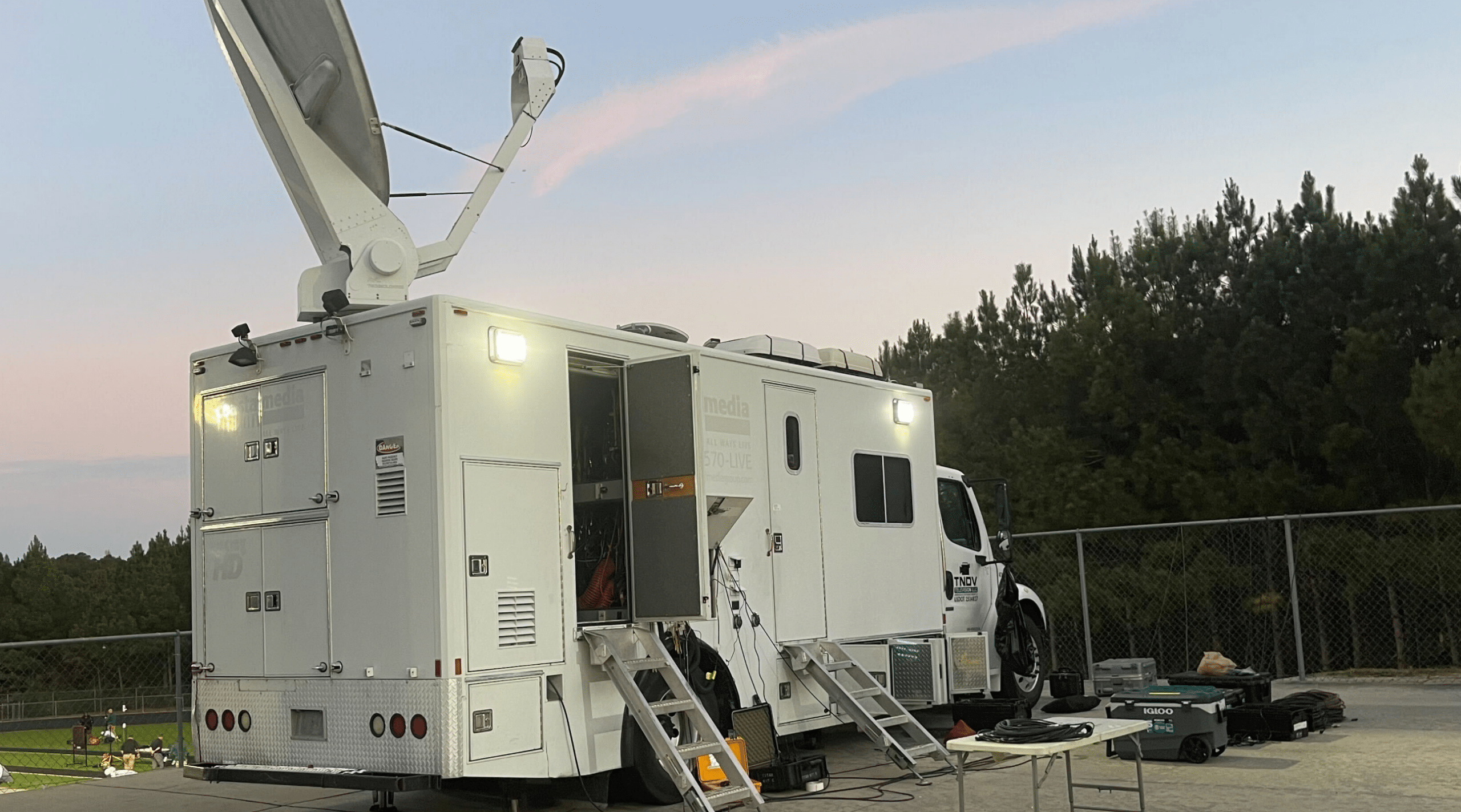

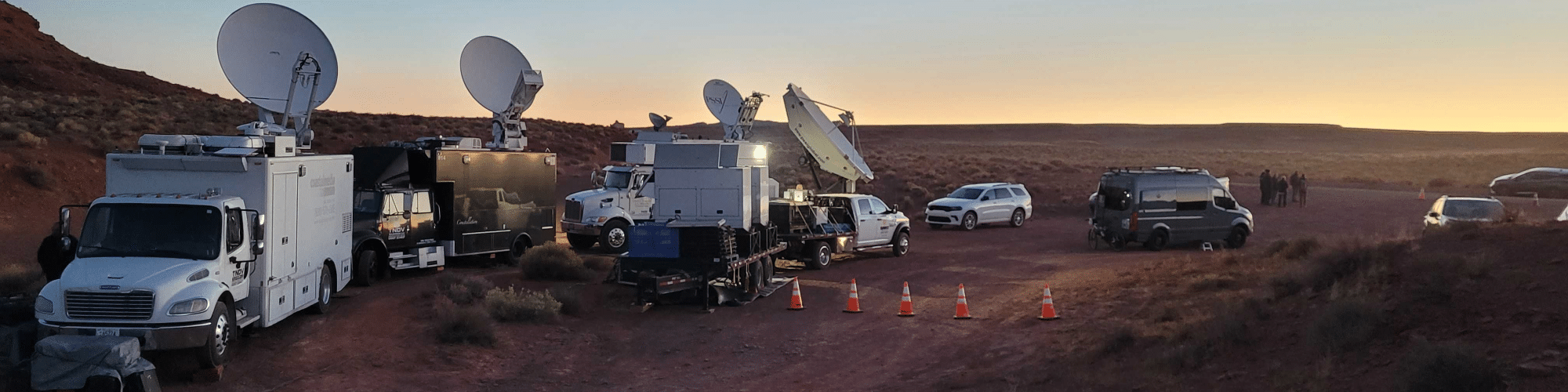

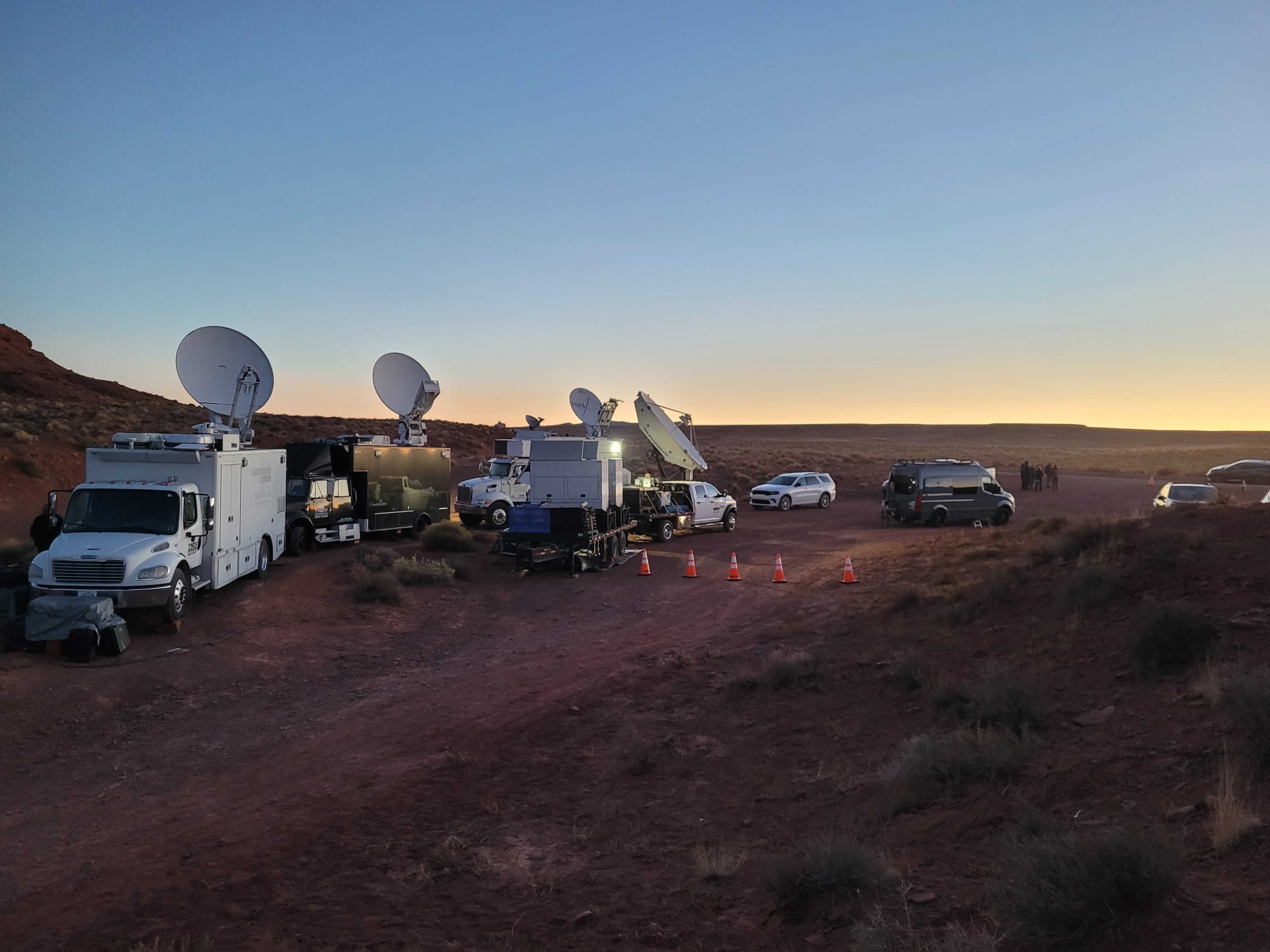

Modulation 26’ Ku Uplink / HD Production Hybrid Overview

Modulation 26’ Ku Uplink / HD Production Hybrid is a highly versatile mobile unit designed for live event production and uplink transmission. Its advanced video, audio, and communications systems make it a compact yet powerful solution for live broadcasts, remote productions, and corporate events. Operated by TNDV, part of the Live Media Group family, Modulation delivers reliability and flexibility for events requiring professional-grade production.

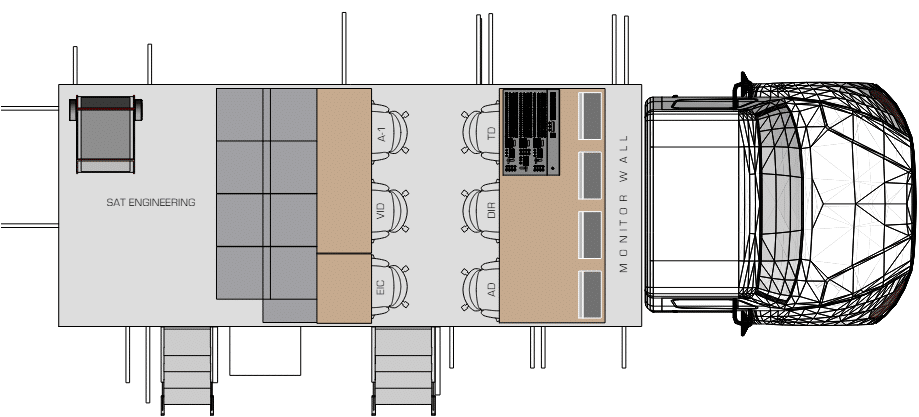

Dimensions and Configuration

Modulation’s compact design offers a practical and efficient footprint for diverse production environments. Measuring 29 feet in length, 9 feet in width, and 13.5 feet in height, the unit has a gross vehicle weight of 26,000 pounds. The system operates on a single-phase, 80-amp power configuration (208 volts) with a 100-foot feeder cable and camlock connectors. An onboard 20kW generator ensures uninterrupted operation, even in remote locations.

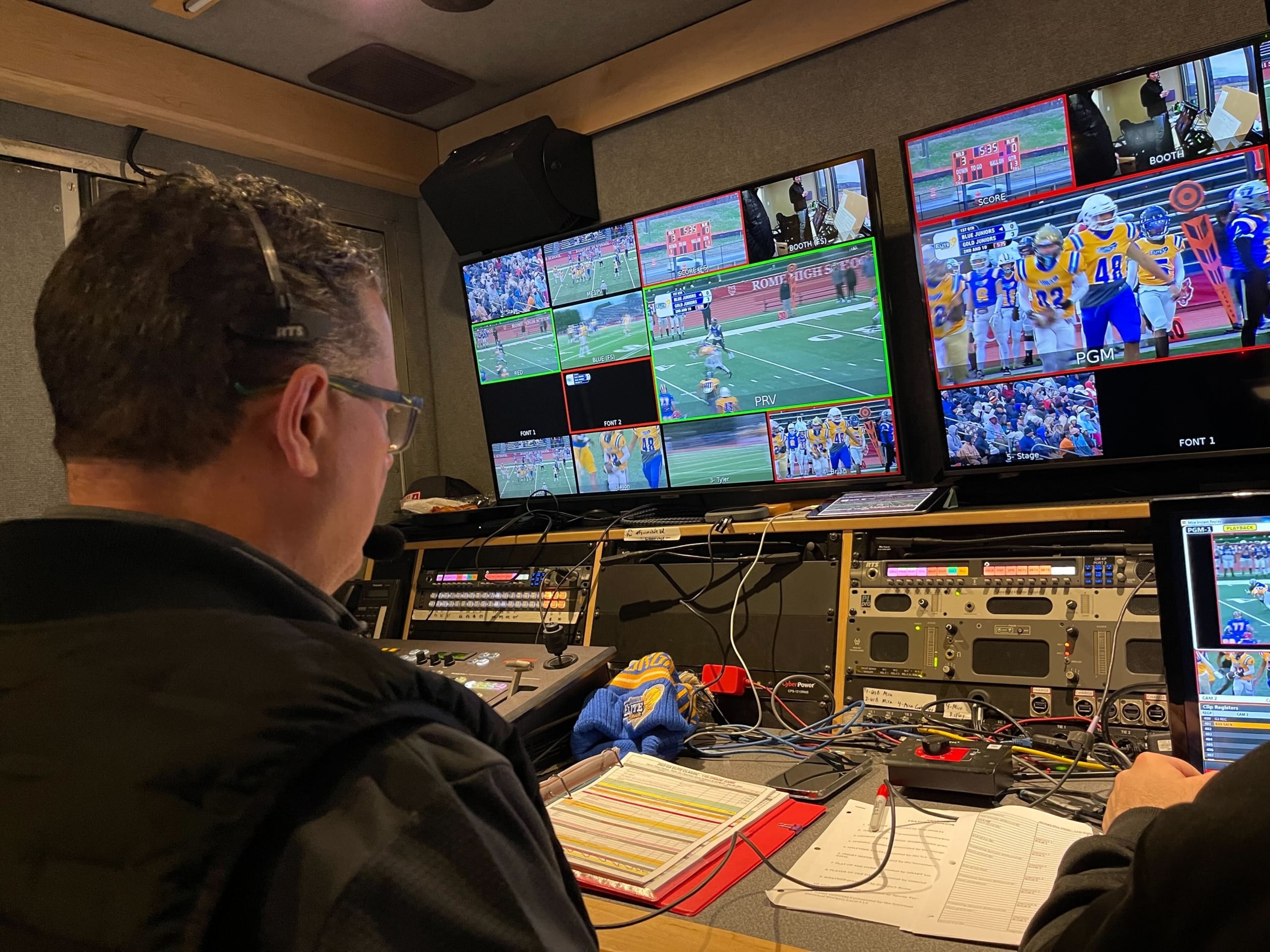

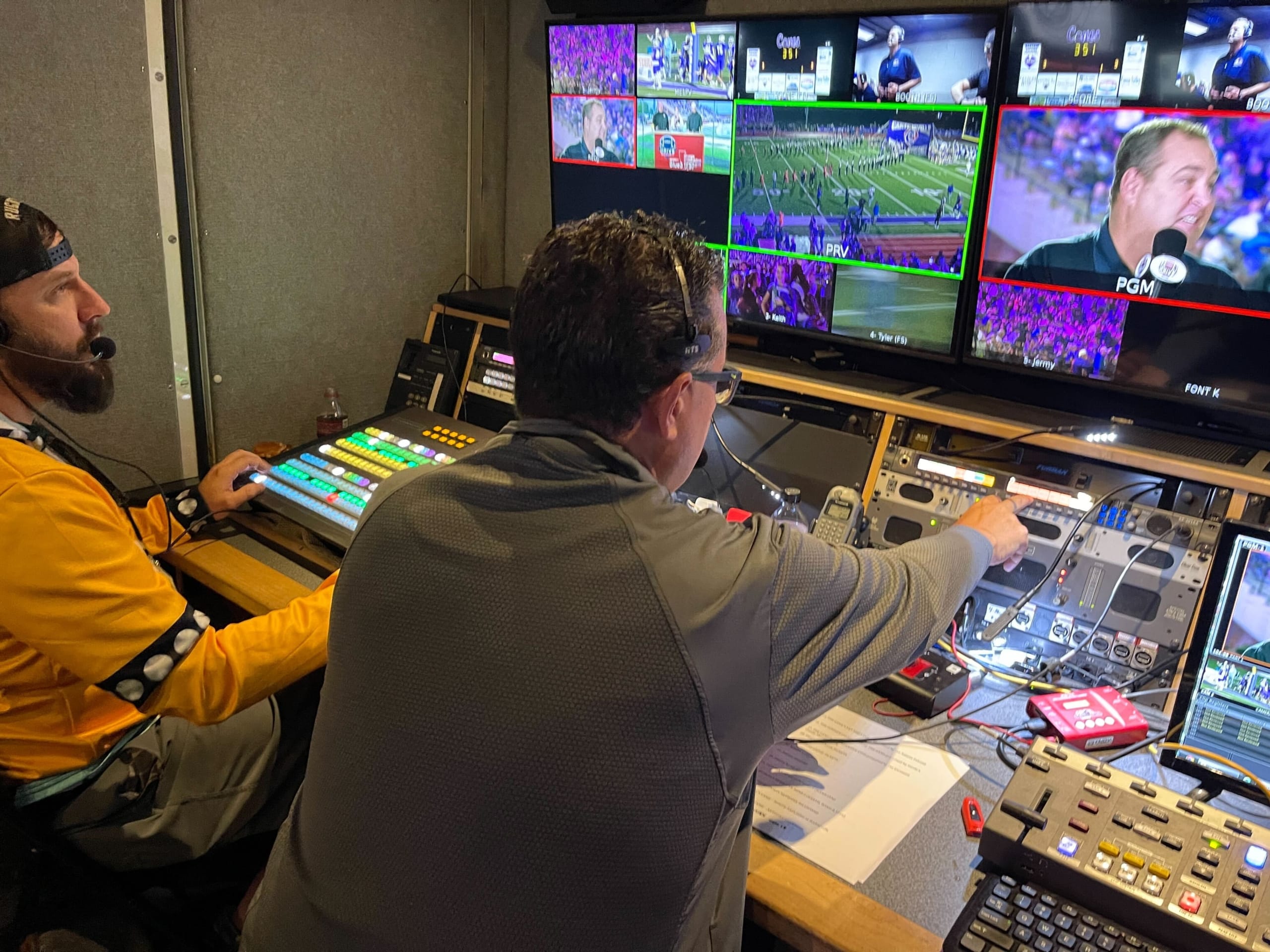

Video Production Technology

At the core of Modulation’s video capabilities is the Ross Carbonite Ultra Switcher, which supports 24 inputs and 10 outputs. It features two M/Es, four keyers per ME, chroma keyers, DVEs, and an integrated still store, providing dynamic video control and flexibility. Recording and replay systems include:

• One AJA KiPro HDD Recorder
• One AJA HELO H.264 Recorder
• One Ross Mira 8-Channel Replay Server

The unit is wired for up to five recorders, enabling smooth and efficient video playback and management during productions.

Camera System

Modulation is wired for up to six CCUs and includes six Hitachi Z-HD5000 Hybrid Fiber Cameras with TAC fiber adapters. The camera setup features:

• Two Fujinon 20x ENG lenses
• Two Fujinon 13×4.5 wide-angle lenses
• Two handheld viewfinders and four 7-inch studio LCD viewfinders

This flexible camera system ensures high-quality visuals and adaptability to varying production requirements. Additional camera and lens options are available to meet specific event needs.

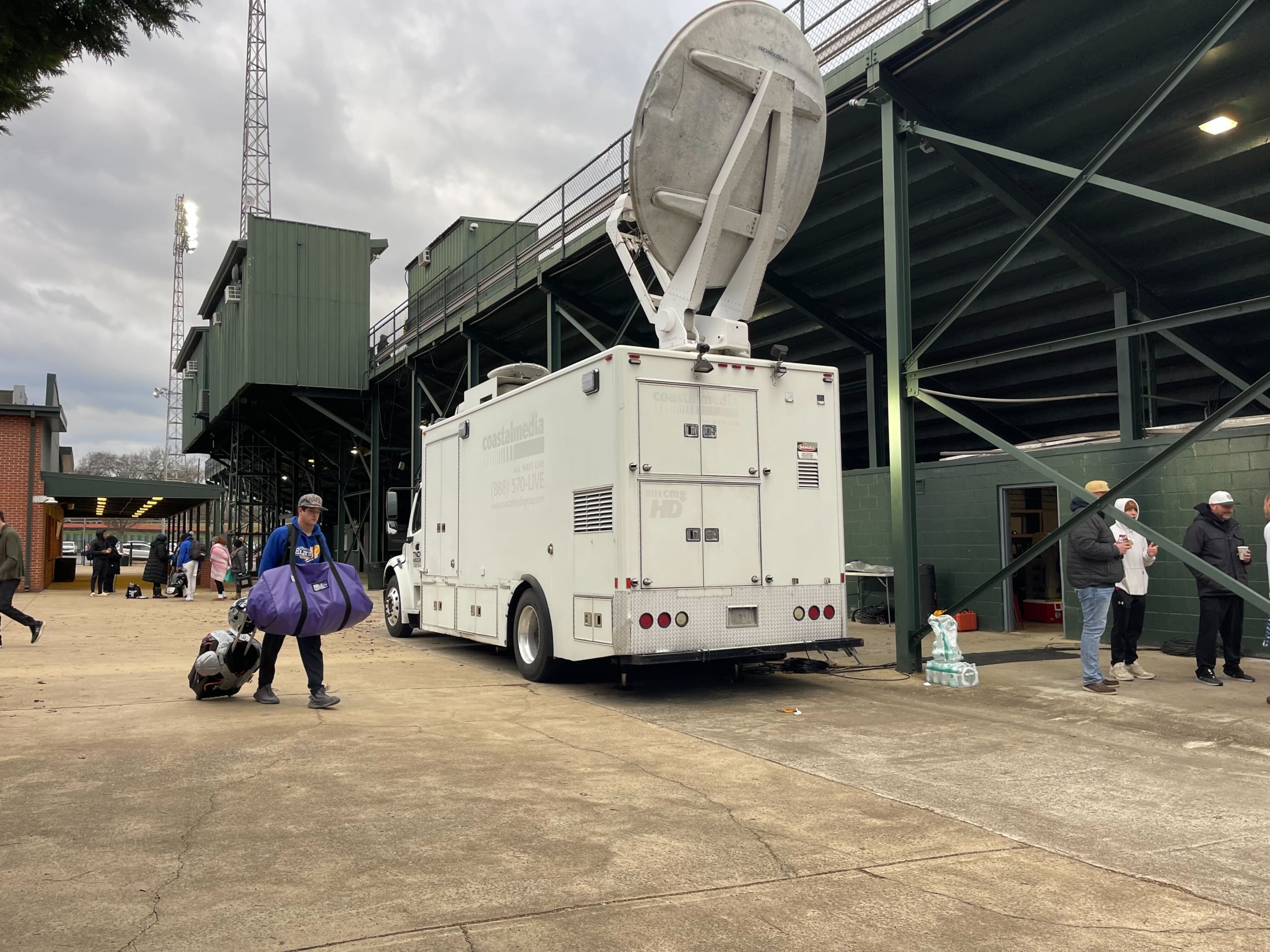

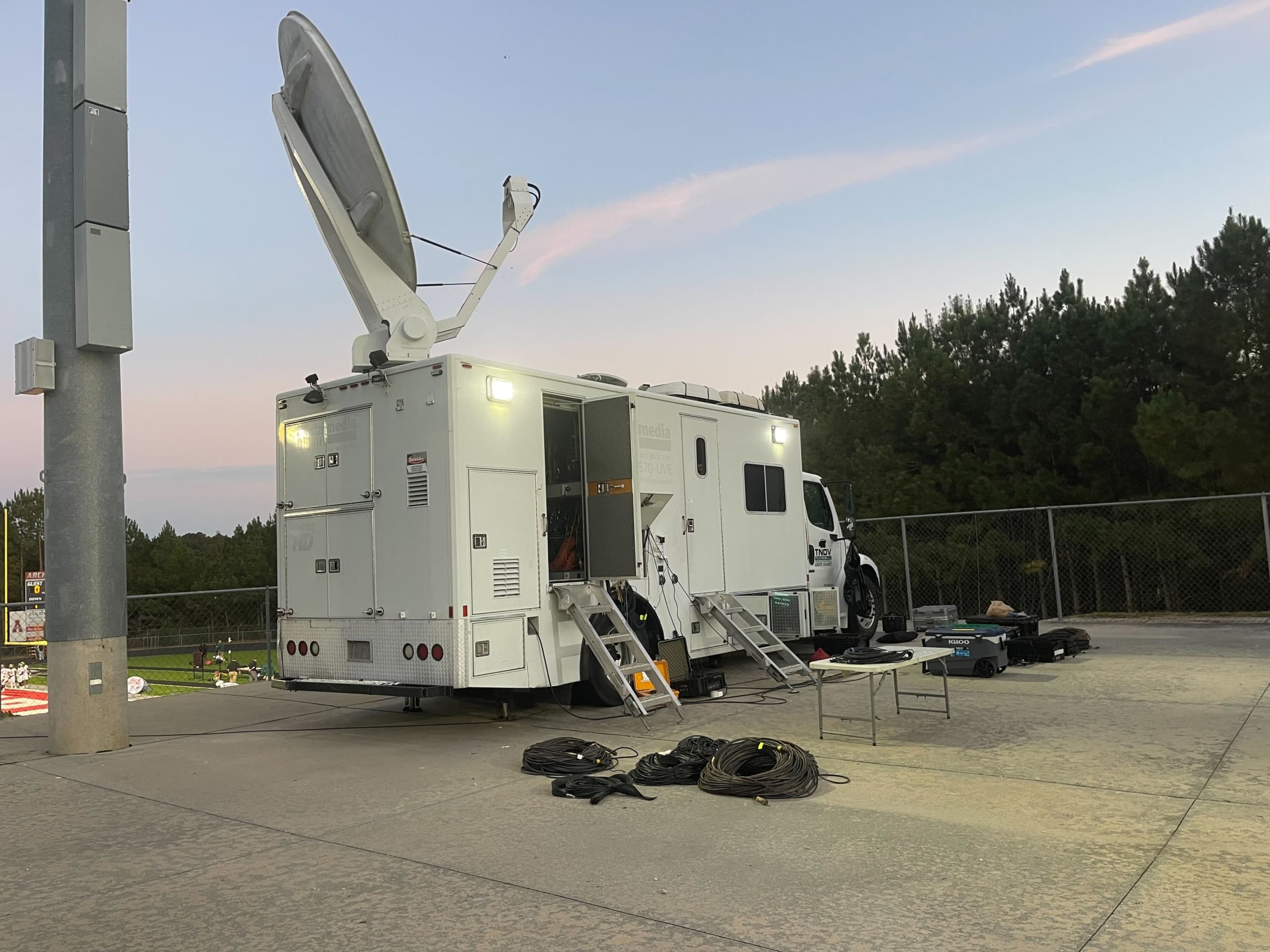

Transmission Capabilities

Modulation’s uplink system ensures reliable and high-quality satellite transmission, featuring:

• A 2.4m AVL Ku uplink antenna with a 4-port feed
• Two 300-watt Ku MCL 3200 TWT amplifiers
• Four Ateme Kyrion CM5000 encoders with remux capability
• Six Adtec RD60 decoders, a DirecTV HD DSS receiver, and an Apple TV OTT receiver
• Multichannel mux availability

With its robust transmission capabilities, Modulation provides stable satellite uplink and versatile streaming options.

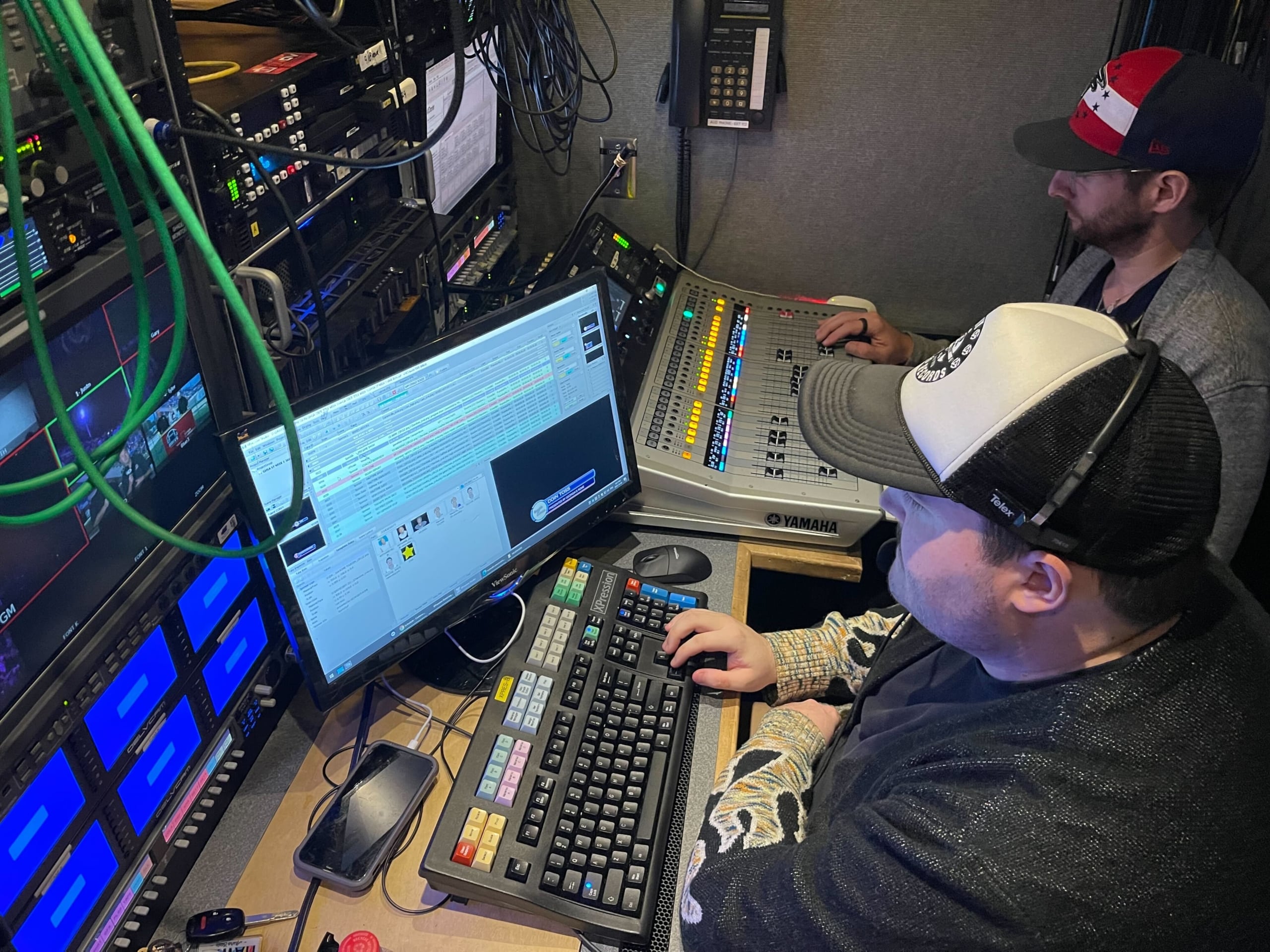

Audio Capabilities

The unit is equipped with a Yamaha TF3 Digital Mixing Console, offering 24 faders and 32 DSP inputs. Key audio features include:

• 32×16 analog channels and 64×64 MADI support
• 16×8 remote stagebox capability
• Two Fostex speakers for monitoring and two Decimator MD-Cross converters for audio versatility

This system delivers clear, high-quality sound for productions of any scale.

Routing and Multiview

Modulation features a 40×40 BlackMagic Design HD/ASI Router, providing seamless signal routing. The system includes:

• Two configurable integrated multiviewers for comprehensive monitoring
• Two HD frame syncs on all switcher inputs for stable and efficient signal management

These tools enable efficient oversight and management of complex video feeds.

Communication Infrastructure

Clear communication is critical for live productions, and Modulation excels with its RTS Cronus 64-Port Digital Matrix system. Key features include:

• Four RTS PL channels and six RTS telephone interfaces
• Four wet IFB channels and two biscuit boxes
• Two VoIP phone lines, two Verizon cellular POTS lines, and a Starlink internet connection for seamless connectivity

This infrastructure ensures reliable and efficient communication among production teams

Graphics Capabilities

The unit includes a Ross XPression Dual-Channel Graphics System (SW version 10.5), enabling professional-grade graphics integration for live events. This system supports dynamic overlays, animations, and branding elements.

Cable Inventory

Modulation is equipped with 500 feet of TAC-8 fiber mult cable, providing the flexibility needed for various venue layouts and production requirements. This inventory ensures the unit is prepared for even the most challenging setups.

Why Modulation Stands Out

Modulation combines advanced production capabilities with a compact and efficient design. Its high-quality video, audio, and uplink systems make it ideal for live events and remote productions. As part of the TNDV fleet under Live Media Group, Modulation benefits from the expertise and reliability of an industry leader.

Applications

Modulation is ideal for:

• Sports events requiring seamless uplink and dynamic camera coverage
• Remote productions needing compact and self-sufficient setups
• Corporate events with high-quality live streaming and audio-video integration
• Broadcast news and field reporting with stable satellite transmission

Technical Specifications

Conclusion

Modulation 26’ Ku Uplink / HD Production Hybrid delivers professional-grade capabilities in a compact and efficient package. From robust video and audio systems to reliable uplink solutions, Modulation is the perfect choice for high-quality live events and remote productions. Contact TNDV today to see how Modulation can elevate your next production.
